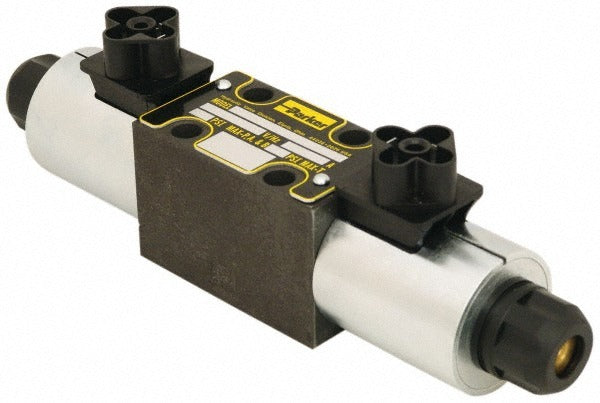

Parker D1VW002CNYG5 Hydraulic Solenoid Valve 19 Gpm

Product Description

The PARKER D1VW002CNYG5 is a three-way hydraulic solenoid valve engineered for demanding industrial hydraulic circuits. Rated to 19 GPM maximum flow and 5,000 psi maximum working pressure, it handles high-force actuator control in both mobile and stationary hydraulic systems. The valve operates on 120 VAC at 60 Hz and uses dual solenoids to shift between flow paths. A nitrile body with nitrile butadiene rubber (NBR) seals resists petroleum-based hydraulic fluids and provides reliable service under sustained pressure cycling. Licensed hydraulic system technicians and industrial maintenance professionals are the primary installers.

This valve suits three-way directional control applications in industrial machinery, press circuits, material-handling equipment, and mobile hydraulic systems where AC power is available at the valve station. It is sized for mid-range hydraulic circuits where flow requirements fall within the 19 GPM envelope and system pressure does not exceed 5,000 psi. The dual-solenoid configuration allows bi-directional shifting from an external control signal without manual intervention.

Key Features

• 19 GPM maximum flow rate supports mid-range hydraulic actuator circuits
• 5,000 psi maximum working pressure rating for high-force applications
• Three-way flow regulation for directional control of single-acting or diverter circuits
• Dual solenoids enable bi-directional electrical shifting
• 120 VAC, 60 Hz input — compatible with standard industrial AC control panels
• Nitrile body and NBR seals resist petroleum-based hydraulic fluid

Compatibility

Designed as an OEM-style replacement or new-installation directional control valve for industrial and mobile hydraulic systems operating on AC power with system pressures up to 5,000 psi and flow rates up to 19 GPM.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Before servicing or replacing the valve, fully depressurize and de-energize the hydraulic system and lock out the electrical supply per NFPA 79 and site lockout/tagout procedures. Verify that supply voltage matches the 120 VAC coil rating before energizing. Ensure port connections are torqued to the fitting manufacturer specifications using appropriate hydraulic thread standards, and confirm system fluid compatibility with NBR seals prior to startup.
