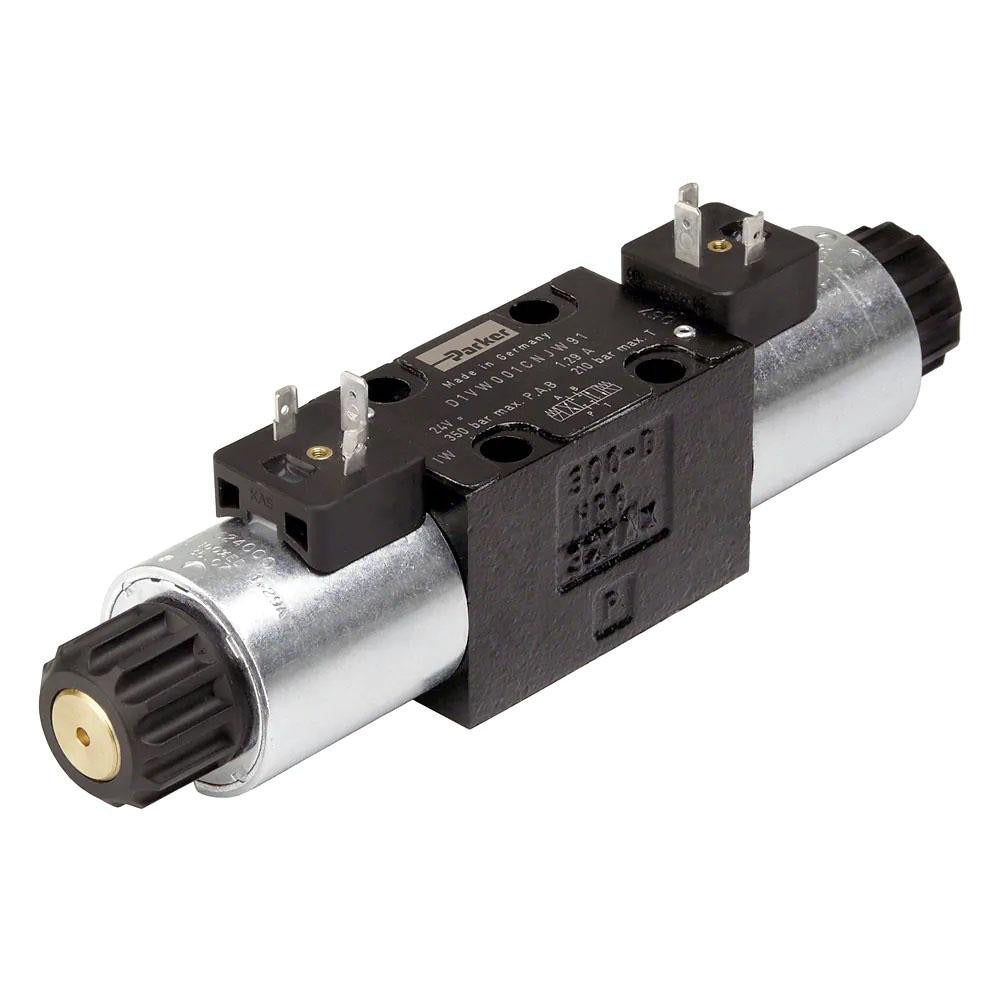

Parker D1VW001CNJW Hydraulic Solenoid Valve 22 Gpm

Product Description

The PARKER D1VW001CNJW is a three-way hydraulic solenoid valve designed for high-pressure fluid control in industrial and mobile hydraulic systems. Rated for a maximum flow rate of 22 GPM and a maximum working pressure of 5000 psi, it handles demanding hydraulic circuits where precise directional control is required. The valve operates on 24 volts DC and features dual solenoids for positive switching between flow paths. The body and seal material are nitrile and nitrile butadiene rubber (NBR), making it compatible with petroleum-based hydraulic fluids. Licensed hydraulic system technicians and industrial maintenance professionals typically specify and install this valve.

The D1VW001CNJW is suited for use in industrial machinery, mobile equipment, and process hydraulic circuits that require three-way directional control. It fits applications where a single valve must direct flow between an inlet and one of two outlet paths, or shift a hydraulic actuator between positions. The dual-solenoid configuration provides positive position holding without relying on spring return alone, which is advantageous in systems where fail-safe positioning is controlled electrically. This valve is appropriate for both stationary industrial installations and mobile hydraulic platforms operating on 24-volt DC electrical systems.

Key Features

• Three-way flow regulation for directional hydraulic circuit control
• 22 GPM maximum flow rate supports high-volume hydraulic circuits
• 5000 psi maximum working pressure for demanding high-pressure systems
• 24-volt DC input with dual solenoids for positive bi-directional switching
• Nitrile and NBR seals compatible with petroleum-based hydraulic fluids
• Compact envelope: 9.62 inches long, 1.81 inches wide, 3.06 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic solenoid valve for industrial and mobile hydraulic systems requiring three-way directional control at up to 5000 psi and 22 GPM on a 24-volt DC circuit.

Installation Notes

Installation should be performed by a qualified hydraulic systems technician. Before servicing, depressurize the hydraulic circuit completely and lock out the power source per applicable OSHA lockout/tagout procedures. Verify that the system supply voltage matches the 24-volt DC solenoid rating before energizing. Inspect all port connections and fittings for proper thread engagement and leak-free seating after installation before returning the system to full operating pressure.
