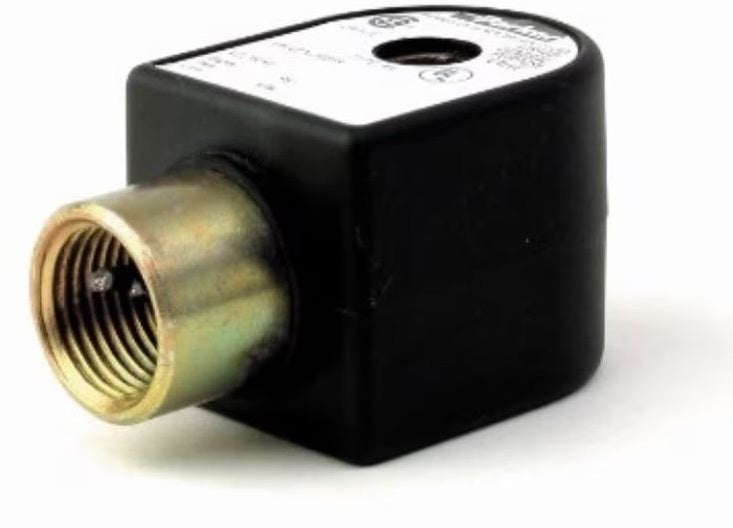

Parker D100Q3 Solenoid Coil

Product Description

The Parker D100Q3 is a solenoid coil designed for use with pressure vessels and Skinner solenoid valves. This component is crucial in generating the magnetic flux needed to operate the valve when electrical power is applied. The robust metal enclosure and frame work together to create a secure magnetic circuit with the plunger and stop. It is rated at ten watts and classified as a Class F coil, ensuring durability and reliability in various environments.

• Designed for pressure vessels and Skinner solenoid valves.
• Rated at ten watts with a Class F coil.
• Protected against environmental factors.

Product Highlights

The Parker D100Q3 coil combines functionality and efficiency for effective valve operation.

Product Information

Standard Information

• Brand: PARKER
• MPN: D100Q3

Technical Specifications

• Coil Type: DIN
• Voltage: 240/60, 220/50
• Coil Voltage: 220/50-240/60 AC
• Wattage: 10
• Class: F
• Power Rating: 10 W
• Electrical Connection: DIN 43650A
• Type of Termination: DIN 43650A/ISO 4400
• Industry Standards: ISO 4400
• Enclosure: NEMA 1, 2, 3, 4 And 4X
• Voltage Rating: 220/240 VAC At 50/60 HZ
