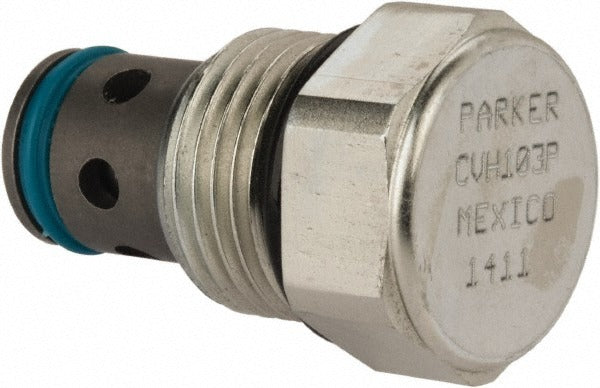

Parker CVH103P Hydraulic Cartridge Check Valve 16 Gpm

Product Description

The PARKER CVH103P is a hydraulic control cartridge check valve designed to allow flow in one direction while blocking reverse flow in hydraulic circuits. Built from steel, it threads into a C10-2 cavity using a 7/8-14 UNF thread and handles a maximum working pressure of 5000 psi with a maximum flow rate of 16 GPM. This two-way flow regulation design is well suited for mobile and industrial hydraulic systems where controlled directional flow and leak-free check function are required. Licensed hydraulic system technicians and fluid power specialists are the primary installers of this valve.

The CVH103P fits into manifold blocks or valve bodies machined to the C10-2 cavity standard. It is appropriate for both mobile hydraulic applications and stationary industrial equipment where cartridge-style valve integration keeps system packaging compact. The 7/8-14 UNF thread is a common cartridge thread size found across a wide range of hydraulic manifolds in agricultural, construction, and industrial machinery.

Key Features

• Maximum working pressure of 5000 psi for high-demand hydraulic circuits
• Maximum flow rate of 16 GPM supports mid-range hydraulic actuator applications
• 7/8-14 UNF thread fits standard C10-2 cavity manifolds
• Two-way cartridge check design prevents reverse flow without additional directional valves
• Steel body construction for durability in high-pressure hydraulic environments
• Compact cartridge format integrates directly into manifold blocks

Compatibility

Designed as an OEM-style cartridge check valve replacement for hydraulic manifolds and valve bodies machined to the C10-2 cavity standard with a 7/8-14 UNF thread port.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic systems specialist. Depressurize the hydraulic system completely and relieve any stored energy before removing or installing cartridge valves. Use the appropriate thread sealant or follow the manifold manufacturer torque guidelines for the C10-2 cavity seat. Verify system pressure and flow ratings do not exceed the valve maximums before returning the system to service.
