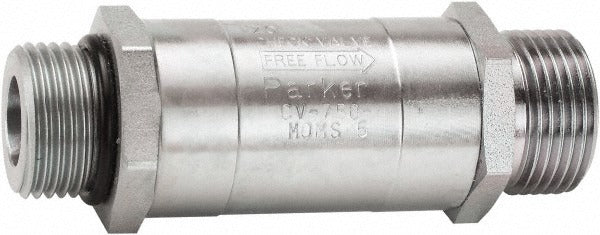

Parker CV-750-MOMS-65 Hydraulic Check Valve 65 Gpm

Product Description

The PARKER CV-750-MOMS-65 is a hydraulic control check valve designed for use in high-pressure fluid power systems. It allows flow in one direction only, preventing backflow and protecting upstream components from pressure spikes and reverse flow conditions. Rated for a maximum working pressure of 3,000 psi and a maximum flow rate of 65 GPM, this valve suits demanding industrial and mobile hydraulic applications. The steel body provides durability under sustained pressure cycling. Nitrile seals offer reliable performance with standard petroleum-based hydraulic fluids. Licensed hydraulic technicians and fluid power specialists typically install and service this component.

This check valve fits inline hydraulic circuits where unidirectional flow control is required. The inlet thread is 1-1/16-12 Male ORB (O-Ring Boss) and the outlet thread is 1-3/16-12 Male Seal-Lok, making it compatible with standard SAE hydraulic fittings found in industrial machinery, mobile equipment, and power unit assemblies. Its compact envelope, at 2.75 inches overall length, 1.38 inches width, and 1.38 inches height, allows installation in tight manifold or plumbing configurations where space is limited.

Key Features

• 3,000 psi maximum working pressure rated for high-pressure hydraulic circuits
• 65 GPM maximum flow rate supports high-volume system demands
• 1-1/16-12 Male ORB inlet and 1-3/16-12 Male Seal-Lok outlet threading
• Steel body construction for pressure cycling durability
• Nitrile seals compatible with petroleum-based hydraulic fluids
• Compact form factor at 2.75 inches overall length for space-constrained installations

Compatibility

Designed as an OEM-style inline check valve for hydraulic systems using SAE Male ORB and Male Seal-Lok threaded connections at 1-1/16-12 and 1-3/16-12 thread sizes respectively.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and de-energize the hydraulic system completely before removing or installing any valve. Verify thread compatibility and torque fittings according to the system manufacturer specifications and applicable fluid power standards. Inspect sealing surfaces for damage before installation and confirm fluid compatibility with Nitrile seal material prior to commissioning.
