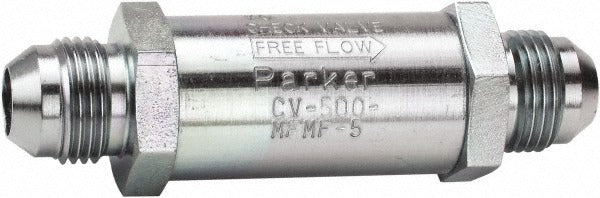

Parker CV-500-MFMF-5 Hydraulic Check Valve 50 Gpm 3000 Psi

Product Description

The PARKER CV-500-MFMF-5 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic fluid circuits. Built from steel with nitrile seals, it is rated for a maximum working pressure of 3,000 psi and a maximum flow rate of 50 GPM. The 3/4-16 male JIC inlet and outlet connections make it compatible with standard JIC fittings used throughout industrial and mobile hydraulic systems. Overall dimensions are 2.22 inches in length, 1 inch in width, and 1 inch in height, with a package weight of 0.439 pounds. Hydraulic technicians and fluid power specialists are the primary installers of this component.

This check valve is suited for use in hydraulic power units, mobile equipment, industrial machinery, and fluid power systems where directional flow control and backflow prevention are required. The male JIC thread standard on both the inlet and outlet simplifies integration into existing JIC-plumbed circuits without the need for additional adapters. It is appropriate for both stationary and mobile hydraulic applications operating within its rated pressure and flow parameters.

Key Features

• Maximum working pressure of 3,000 psi for demanding hydraulic circuit applications
• Maximum flow rate of 50 GPM accommodates high-volume hydraulic systems
• 3/4-16 male JIC inlet and outlet for direct integration with standard JIC fittings
• Steel body construction for durability in high-pressure environments
• Nitrile seals provide resistance to petroleum-based hydraulic fluids
• Compact footprint at 2.22 inches long, 1 inch wide, and 1 inch tall

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems using 3/4-16 male JIC fittings operating at up to 3,000 psi and 50 GPM.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and de-energize the hydraulic system completely before removing or installing any valve. Verify that the circuit flow direction matches the valve orientation before finalizing connections. Torque JIC fittings per the fitting manufacturer specifications and inspect for leaks during initial system pressurization.
