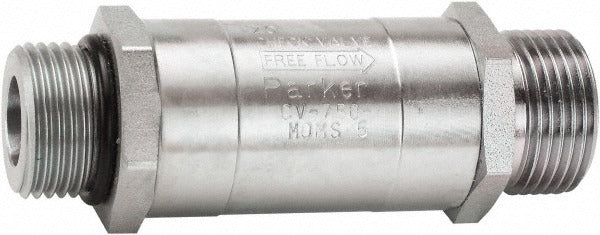

Parker CV-370-MOMS-5 Hydraulic Check Valve 13 Gpm

Product Description

The PARKER CV-370-MOMS-5 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic circuits. Rated for a maximum working pressure of 3000 psi and a maximum flow rate of 13 GPM, this valve is built for demanding hydraulic applications. The body is constructed from steel and uses nitrile seals for reliable fluid compatibility. Threaded connections follow the Male ORB x Male Seal-Lok standard, with a 9/16-18 inlet and an 11/16-16 outlet. Installed by hydraulic system technicians and fluid power mechanics, this valve fits inline within a hydraulic circuit where directional flow control is required.

This check valve is suited for use in mobile hydraulic equipment, industrial machinery, and power unit assemblies where controlled unidirectional flow and backflow prevention are critical. Its compact envelope — 1.75 inches in overall length, 0.81 inches wide, and 0.81 inches tall — makes it practical for installations where space is limited. The Male ORB x Male Seal-Lok thread configuration is common in OEM and aftermarket hydraulic plumbing on construction, agricultural, and industrial platforms.

Key Features

• Maximum working pressure of 3000 psi for high-pressure hydraulic circuits
• Maximum flow rate of 13 GPM for medium-flow system sizing
• Steel body construction for durability in hydraulic service
• Nitrile seals compatible with petroleum-based hydraulic fluids
• Male ORB x Male Seal-Lok thread standard for leak-resistant connections
• Compact form factor at 1.75 inches overall length

Compatibility

Designed as an OEM-style hydraulic check valve for systems using Male ORB x Male Seal-Lok fittings with a 9/16-18 inlet and 11/16-16 outlet thread configuration, rated to 3000 psi working pressure.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic mechanic. Depressurize and de-energize the hydraulic system completely before removing or installing any valve. Verify thread type and torque connections to fitting manufacturer specifications using appropriate hydraulic wrenches. Confirm flow direction arrows or markings on the valve body align with the intended circuit flow direction before finalizing installation.
