Parker CV-370-MFMF-65 Check Valve 13 Gpm 3000 Psi

Product Description

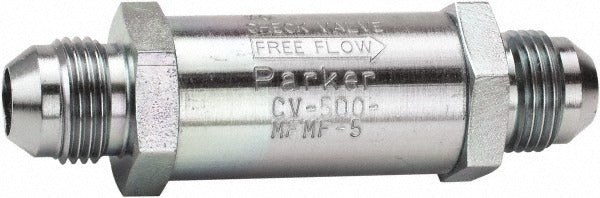

The PARKER CV-370-MFMF-65 is a hydraulic control check valve designed to allow flow in one direction while preventing reverse flow in hydraulic circuits. Built with a steel body and nitrile seals, it handles up to 13 GPM and a maximum working pressure of 3,000 psi. The inlet and outlet are both 9/16-18 Male JIC threaded connections, making integration into standard hydraulic lines straightforward. At 1.75 inches in overall length and 0.81 inches in both width and height, this is a compact inline component suited for space-constrained hydraulic assemblies. Licensed hydraulic technicians and fluid power specialists are the primary installers.

This check valve fits into hydraulic systems where preventing backflow is critical to circuit function and component protection. Typical applications include mobile hydraulic equipment, industrial machinery, and fluid power control circuits that use Male JIC fittings. The 9/16-18 thread standard is common across a wide range of hydraulic plumbing configurations, making this valve a practical fit for new builds and service replacements alike. It is sold individually with a minimum order quantity of one.

Key Features

• Maximum flow rate of 13 GPM for medium-duty hydraulic circuit applications
• Rated to 3,000 psi maximum working pressure
• 9/16-18 Male JIC threaded inlet and outlet for standard hydraulic line compatibility
• Steel body construction for durability in high-pressure environments
• Nitrile seal material suitable for use with common hydraulic fluids
• Compact form factor at 1.75 inches length and 0.81 inches width and height

Compatibility

Designed as an OEM-style inline check valve for hydraulic systems using 9/16-18 Male JIC fittings rated to 3,000 psi and flow rates up to 13 GPM.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic systems specialist. Depressurize and de-energize the hydraulic circuit fully before removing any existing valve or fitting. Verify thread engagement and use appropriate thread sealant or fitting practices per system requirements. Confirm flow direction markings on the valve body align with intended circuit flow before final assembly.
