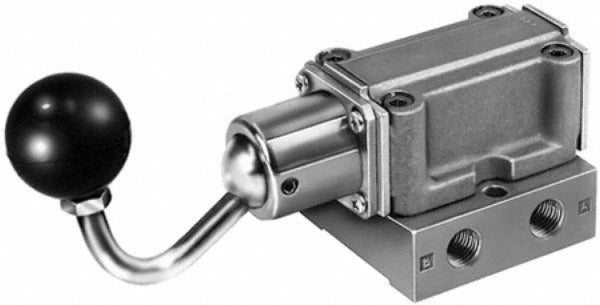

Parker CC537B 4-way 2-position Hand Toggle Air Valve

Product Description

The PARKER CC537B is a manually operated 4-way, 2-position directional control valve actuated by a hand toggle-locking mechanism. It controls the flow and direction of compressed air in pneumatic circuits without requiring electrical or pilot signals. The valve carries a Cv rating of 1.5 and uses NPT threaded connections, making it straightforward to integrate into standard pneumatic plumbing. It is intended for use by pneumatic technicians and industrial maintenance professionals who need a reliable, mechanically operated valve for controlling actuators, cylinders, or other pneumatic devices.

This valve is suited for industrial and light commercial pneumatic systems where manual control of airflow direction is required. Typical applications include controlling double-acting cylinders, switching air circuits, and managing pneumatic tooling in production or maintenance environments. The locking toggle actuator allows the operator to set and hold a position without continuous hand pressure, which is useful in applications where the valve state must remain fixed between operations.

Key Features

• 4-way, 2-position spool configuration for directional control of pneumatic actuators
• Hand toggle-locking actuator holds selected position without continuous operator input
• Cv rating of 1.5 for controlled airflow capacity
• NPT threaded ports for compatibility with standard pneumatic plumbing fittings
• Manual activation requires no electrical power or pilot air supply

Compatibility

Designed as an OEM-style replacement or direct-install manual directional control valve for standard NPT-ported pneumatic circuits requiring 4-way, 2-position flow control.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance professional. Depressurize the pneumatic circuit fully before removing or installing any valve. Ensure NPT fittings are properly sealed with thread sealant rated for compressed air service. Follow applicable local and national codes for compressed air system work when selecting operating pressures and line sizes.
