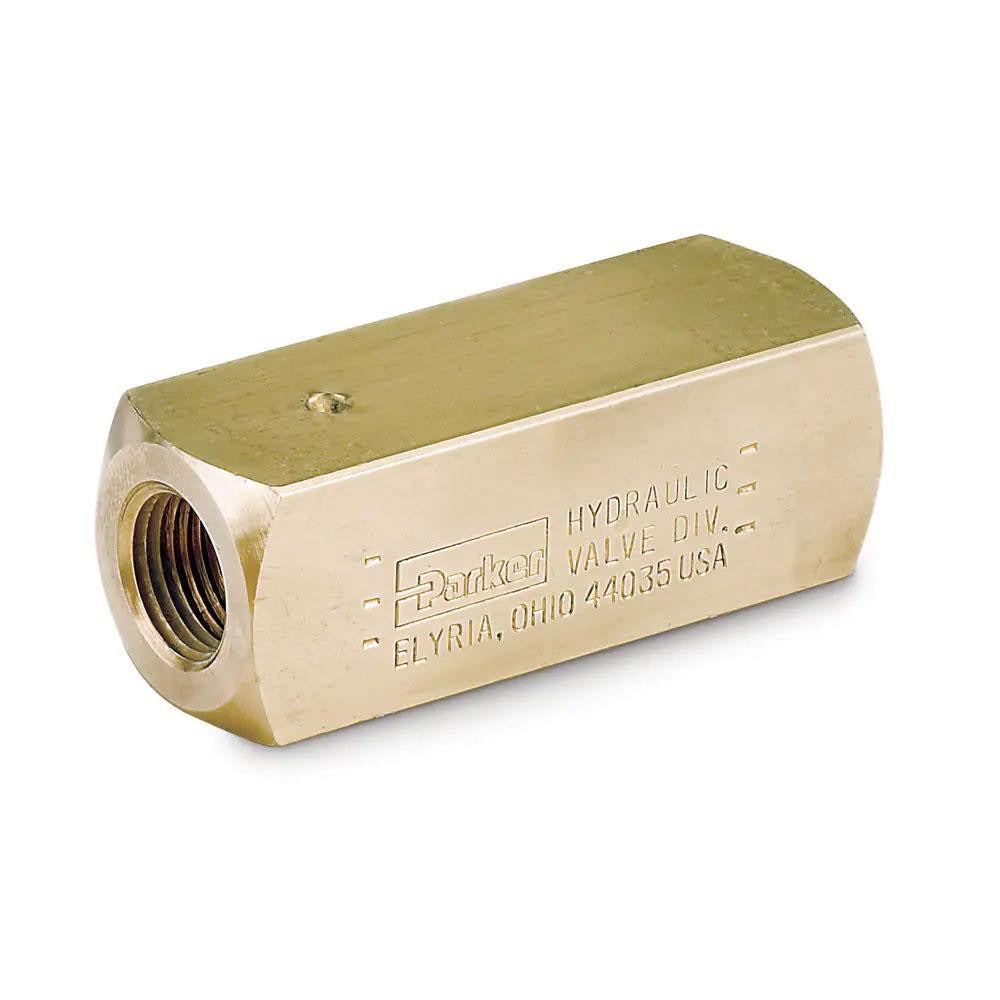

Parker C800B Hydraulic Control Valve 1/2 in 15 Gpm 2000 Psi

Product Description

The PARKER C800B is a one-way hydraulic control valve designed to regulate fluid flow in hydraulic systems. Built with a brass body and nitrile seals, it handles a maximum working pressure of 2000 psi and a maximum flow rate of 15 GPM. The 1/2-14 NPT threaded inlet and 3.44-inch overall length make it a compact, direct-fit component for mobile equipment, industrial machinery, and other hydraulic circuits. Installation is performed by hydraulic technicians and millwrights working on low- to medium-pressure hydraulic lines.

The C800B is suited for applications requiring one-way flow regulation in hydraulic systems operating up to 2000 psi. Its brass construction makes it appropriate for use in systems where corrosion resistance and reliable sealing are required. The 1/2-inch NPT inlet is a common pipe size found in a wide range of hydraulic assemblies, including mobile equipment, lifts, presses, and industrial automation systems. Package quantity is 1 unit per order.

Key Features

• One-way flow regulation for controlled hydraulic circuit performance
• Maximum working pressure of 2000 psi for medium-pressure system compatibility
• Maximum flow rate of 15 GPM to match common hydraulic circuit demands
• Brass body construction for corrosion resistance and durability
• Nitrile seals for reliable performance with petroleum-based hydraulic fluids
• Compact 3.44-inch overall length for space-constrained installations

Compatibility

Designed as an OEM-style replacement or direct-fit hydraulic control valve for systems using 1/2-14 NPT connections rated up to 2000 psi and 15 GPM.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright. Depressurize and fully isolate the hydraulic system before removing or installing any valve components. Apply appropriate thread sealant to NPT threads and torque to the system manufacturer specifications. Verify flow direction markings on the valve body before final connection to ensure correct one-way orientation.
