Parker C628-08FRLWJCWR Frl 240 Scfm 250 Psi 1 Npt 3-piece

Product Description

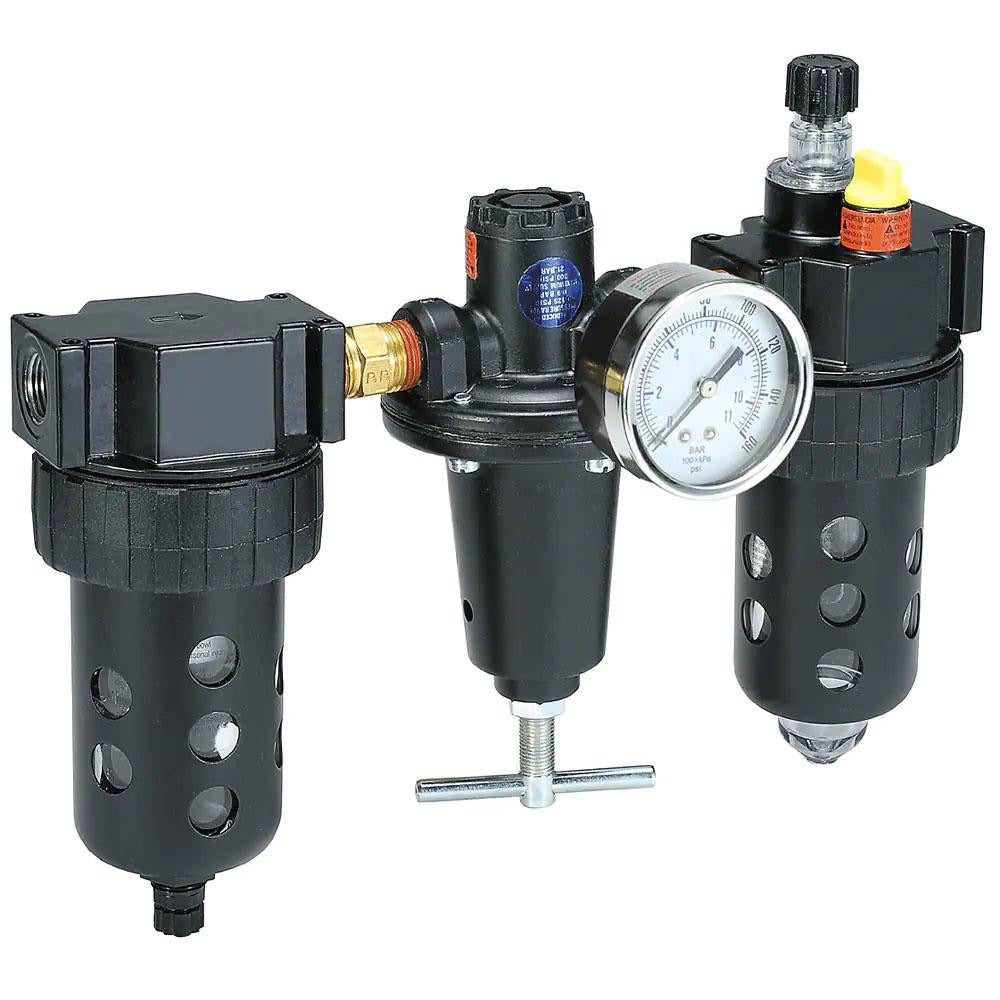

The PARKER C628-08FRLWJCWR is a heavy-duty, 3-piece filter-regulator-lubricator (FRL) combination unit designed for compressed air preparation in industrial and commercial pneumatic systems. Rated at 240 SCFM with a maximum supply pressure of 250 psi, it conditions incoming air by filtering particulates down to 40 microns, regulating downstream pressure to a stable set point, and delivering metered lubrication to downstream tools and actuators. The unit ships with a pressure gauge and features an automatic drain on the filter bowl. It is installed and serviced by industrial maintenance technicians and pipefitters working on pneumatic distribution systems.

This FRL unit is suited for high-flow pneumatic applications requiring a full 1 NPT port connection, including production lines, assembly stations, large pneumatic actuators, and air-powered machinery in manufacturing or processing facilities. The Series C628 design accommodates moderate temperature ranges, making it appropriate for indoor industrial environments. The included sight glass allows quick visual confirmation of lubricator oil level without disassembly, and the metal bowl with bowl guard provides durability in demanding shop environments.

Key Features

• 240 SCFM flow capacity supports high-demand pneumatic systems at 1 NPT port size
• Maximum supply pressure of 250 psi with integrated pressure gauge for at-a-glance monitoring
• Automatic drain on filter bowl reduces manual maintenance intervals
• 40-micron filtration rating removes particulates before they reach downstream components
• Metal bowl with bowl guard for impact resistance in industrial environments
• 16-ounce lubricator bowl capacity with sight glass for easy oil level inspection

Compatibility

Designed as an OEM-style replacement or new-installation FRL unit for heavy-duty industrial compressed air systems requiring a 1 NPT connection and high-flow air preparation.

Installation Notes

Installation should be performed by a qualified pipefitter or industrial maintenance technician familiar with compressed air system work. Depressurize and lock out the air supply line completely before installing or servicing this unit. Mount the FRL vertically with the bowl facing down to allow proper condensate drainage and lubricator function. Confirm all NPT threaded connections are sealed with thread sealant rated for compressed air service before restoring system pressure.
