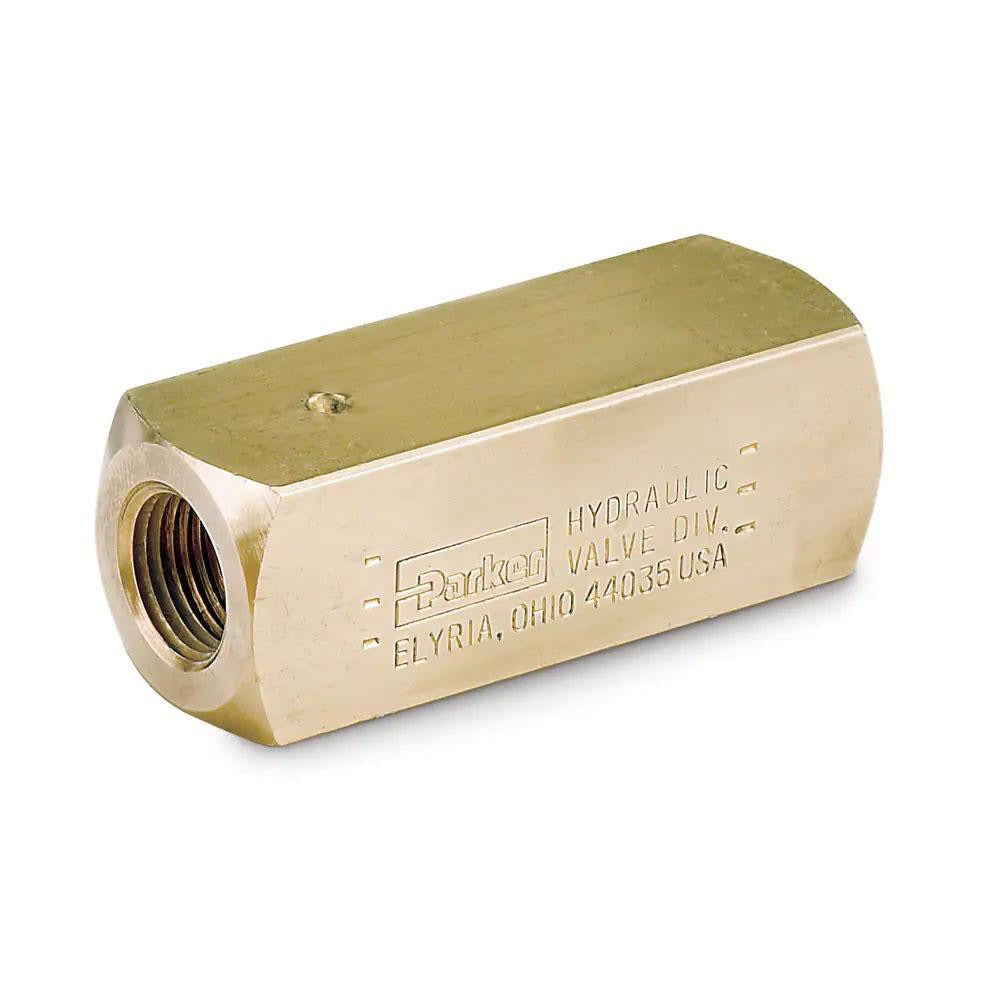

Parker C1200S Hydraulic Control Valve 3/4 in 25 Gpm 5000 Psi

Product Description

The PARKER C1200S is a one-way hydraulic control valve designed to regulate flow in hydraulic systems. Built with a steel body and nitrile seals, it handles a maximum working pressure of 5000 psi and a maximum flow rate of 25 GPM. The 3/4-inch NPT inlet uses a 3/4-14 thread, and the valve measures 3.88 inches in overall length. Weighing 2 pounds, it is compact enough for tight installations while rated for demanding industrial and mobile hydraulic applications. Hydraulic technicians and fluid power mechanics install this valve as part of actuator control circuits, directional control systems, and flow management assemblies.

The C1200S is suited for use in mobile equipment, industrial machinery, and hydraulic power units where one-way flow regulation is required. Its NPT thread standard makes it compatible with standard hydraulic plumbing configurations used across a wide range of residential and commercial equipment. The steel body construction holds up in environments where pressure fluctuations and fluid contamination are common concerns.

Key Features

• One-way flow regulation for directional hydraulic control
• Maximum working pressure of 5000 psi for high-demand applications
• Maximum flow rate of 25 GPM
• 3/4-14 NPT thread for standard hydraulic plumbing compatibility
• Steel body construction for durability under pressure cycling
• Nitrile seals rated for use with petroleum-based hydraulic fluids
• Compact 3.88-inch overall length for space-constrained installations

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic control valve for systems using 3/4-inch NPT ported components operating within 25 GPM and 5000 psi ratings.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and de-energize the hydraulic system fully before removing or installing any valve. Verify thread engagement and use appropriate thread sealant rated for hydraulic service. Do not exceed the rated 5000 psi working pressure or 25 GPM flow rate during operation.
