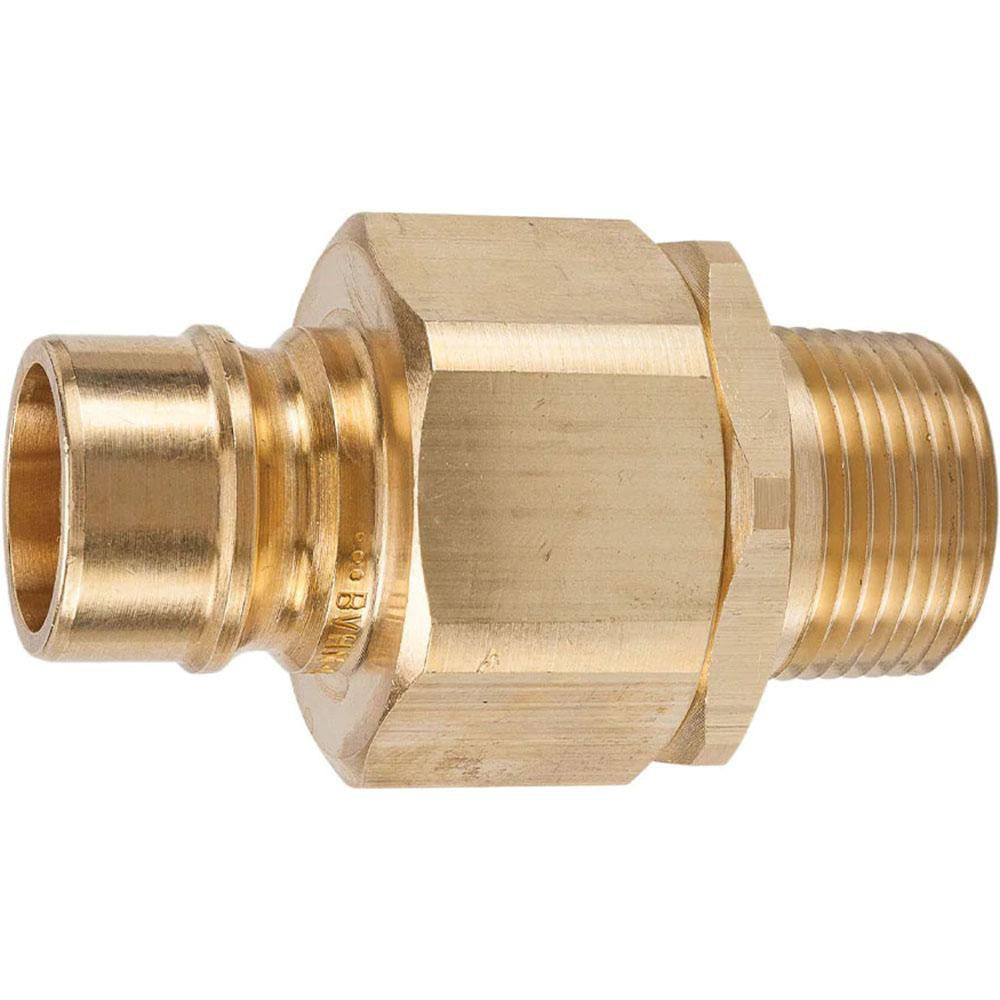

Parker BVHN16-16M Hydraulic Hose Mpt Fitting 1 in 1750 Psi

Product Description

The PARKER BVHN16-16M is a straight male pipe thread (MPT) fitting designed for hydraulic hose assemblies operating at up to 1,750 psi. Machined from brass with NPT threaded connections, this fitting provides a reliable, leak-resistant joint in fluid transfer lines. The straight body profile and 1-inch hose size make it a standard choice for technicians assembling or servicing hydraulic circuits on industrial machinery and mobile equipment. At 3.09 inches in overall length and weighing 0.89 pounds, it is a compact, durable component suited for high-cycle service environments where corrosion resistance matters.

This fitting is rated for use on industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines. The NPT thread form provides a tapered, pressure-tight seal when properly installed with appropriate thread sealant. It is a Series H fitting, placing it in a well-established Parker product line commonly found in maintenance shops, OEM assembly lines, and field service kits. Licensed plumbers, hydraulic system technicians, and heavy equipment mechanics are the typical installers.

Key Features

• 1,750 psi maximum working pressure for demanding hydraulic and fluid system applications
• Brass construction provides corrosion resistance in water, coolant, and hydraulic fluid service
• NPT tapered thread connection delivers a pressure-tight seal
• Straight body shape simplifies routing and reduces hose stress at the connection point
• 1-inch hose size and 1-inch thread size for a matched, full-flow connection
• Sold individually — no minimum order beyond single-unit quantity

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 1-inch NPT male pipe thread connection rated to 1,750 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Apply an appropriate thread sealant or PTFE tape to NPT threads in accordance with the system fluid compatibility and applicable industry standards. Do not overtighten — NPT fittings seal on the taper and excessive torque can crack brass fittings or distort mating ports.
