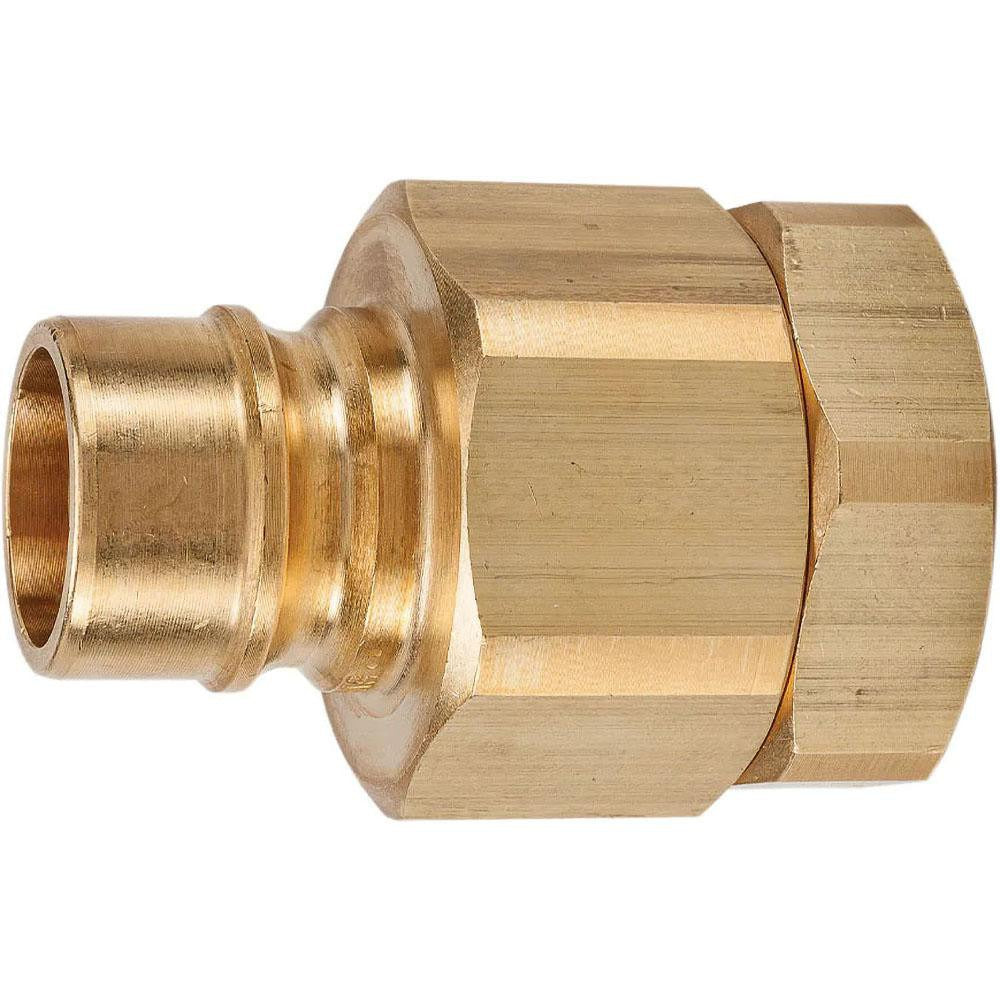

Parker BVHN12-12F Hydraulic Hose Valve Fitting 3/4 in 2000 Psi

Product Description

The PARKER BVHN12-12F is a straight hydraulic hose valve fitting designed for use in industrial and mobile hydraulic fluid systems. Built from brass with a 3/4-inch NPTF threaded connection, it delivers a maximum working pressure of 2,000 psi and handles temperatures ranging from -35 degrees F to 250 degrees F. The straight-body profile and threaded shaft type make it a direct, reliable connection point between hose assemblies and valve ports. Hydraulic technicians and equipment mechanics typically select this fitting when assembling or servicing high-pressure fluid lines on mobile equipment and industrial machinery.

The BVHN12-12F is suited for industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines requiring a 3/4-inch threaded interface. Its Series H construction and brass material make it appropriate for moderate-pressure fluid handling applications where corrosion resistance and pressure integrity are both required. This fitting is sold individually and is appropriate for both new installations and replacement service work.

Key Features

• Brass construction provides corrosion resistance for hydraulic, water, and coolant service
• 2,000 psi maximum working pressure rated for demanding hydraulic circuits
• 3/4-inch NPTF threaded connection ensures a pressure-tight, tapered-thread seal
• Straight body shape simplifies in-line hose-to-valve connections
• Wide temperature range from -35 degrees F to 250 degrees F covers most mobile and industrial environments
• Overall length of 2.29 inches for compact installation in tight spaces

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 3/4-inch NPTF threaded fitting interface.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. NPTF tapered threads form a mechanical pressure seal — apply appropriate thread sealant per the system fluid compatibility requirements and do not overtighten, as brass fittings can crack under excessive torque. Verify that all adjacent hose assemblies and valve ports match the 3/4-inch thread specification before assembly.
