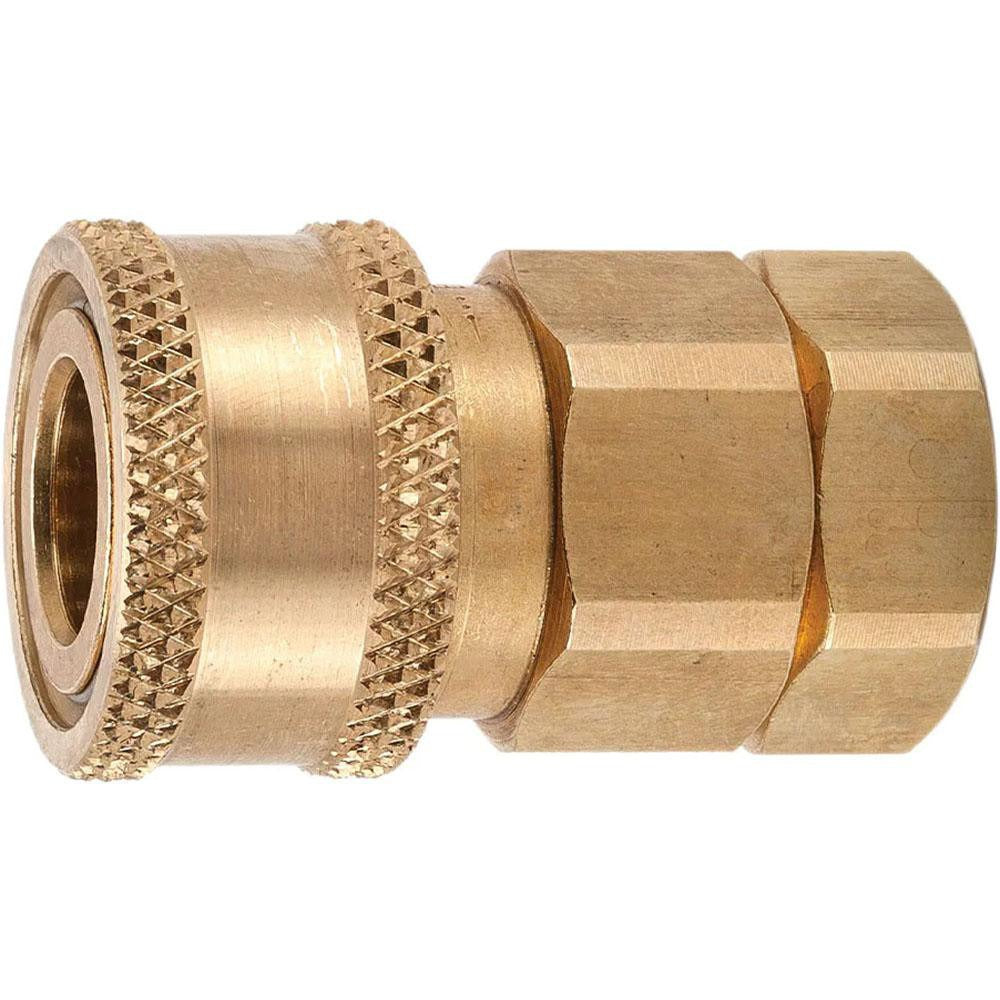

Parker BVHC6-6F Hydraulic Hose Valve Fitting 3/8 in 2250 Psi

Product Description

The PARKER BVHC6-6F is a straight hydraulic hose valve fitting designed for use in industrial hydraulic and fluid power systems. Constructed from brass with an NPTF threaded connection, this fitting accepts 3/8 inch hose and carries a maximum working pressure of 2,250 psi. At 1.9 inches in overall length, it offers a compact inline connection point suitable for tight routing situations. The fitting is rated for operating temperatures from -35 degrees F to 250 degrees F, making it viable across a wide range of service environments. Licensed plumbers, hydraulic system technicians, and fluid power mechanics typically install this type of fitting during system assembly or repair.

The BVHC6-6F is suited for industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines requiring a reliable threaded valve fitting. Its Series H design and NPTF shaft type make it a standard-format fitting across common fluid power plumbing configurations. The straight body shape simplifies inline installation where no angular offset is needed. This fitting is appropriate for both new-build hydraulic assemblies and field repairs requiring an OEM-compatible replacement connection point.

Key Features

• 2,250 psi maximum working pressure for demanding hydraulic service
• Brass construction resists corrosion in water, coolant, and hydraulic fluid contact
• NPTF threaded connection provides a pressure-tight seal without additional sealant in many applications
• Straight body shape allows direct inline hose-to-valve connections
• Wide temperature range: -35 degrees F to 250 degrees F
• Compact 1.9 inch overall length suits tight plumbing runs

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines requiring a 3/8 inch NPTF threaded hose valve fitting rated to 2,250 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber following applicable system pressure and fluid compatibility requirements. Depressurize and drain the hydraulic or fluid line completely before removing or installing any fitting. Use appropriate thread sealant or PTFE tape on NPTF threads only as required by the system specification, as NPTF connections are designed to seal on the thread form itself. Inspect the mating port threads for damage before installation to ensure a leak-free connection.
