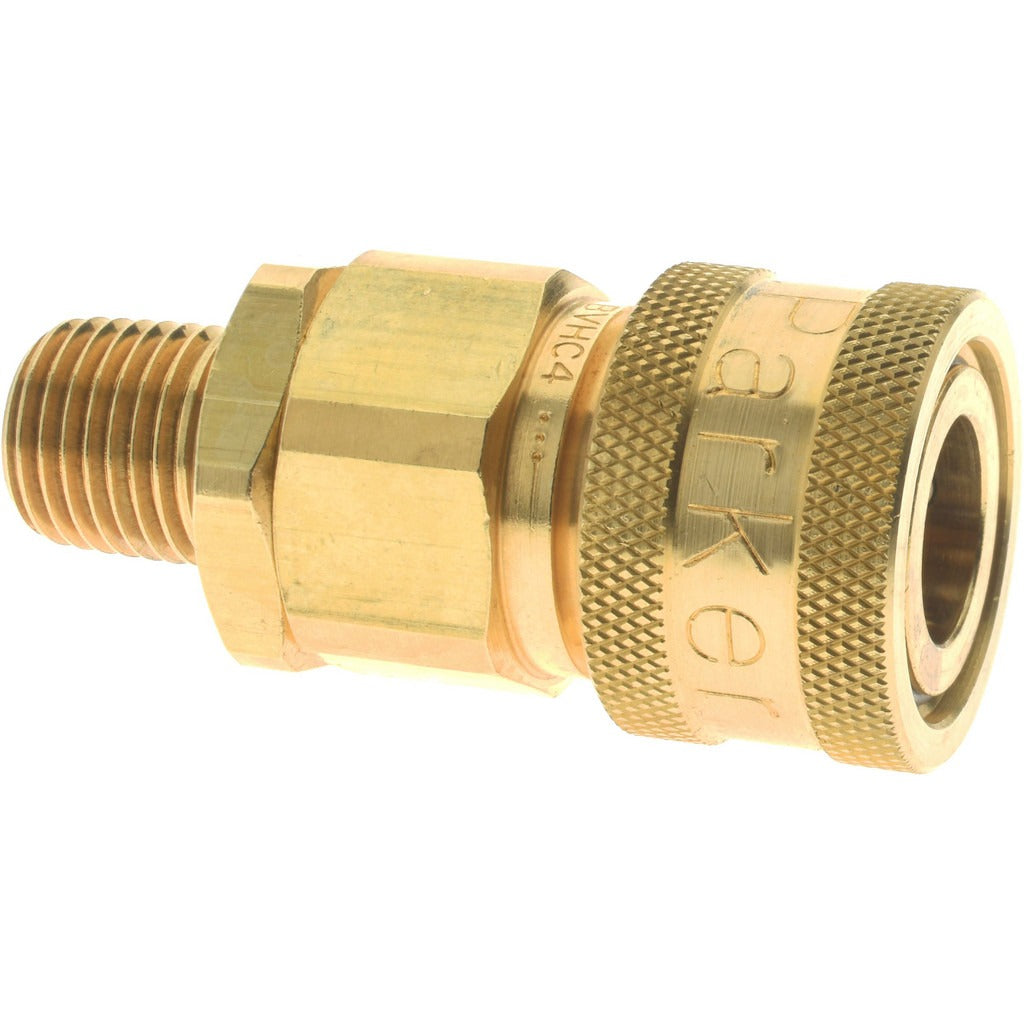

Parker BVHC4-4M Hydraulic Hose Mpt Fitting 1/4 in 2250 Psi

Product Description

The PARKER BVHC4-4M is a straight male pipe thread (MPT) fitting designed for use in hydraulic hose assemblies operating at pressures up to 2,250 psi. Constructed from brass with NPT threaded connections, this fitting provides a reliable, leak-resistant joint in fluid power systems. The straight body profile and 1/4 inch hose size make it a compact, direct-connect solution for routing hydraulic lines in tight installations. It is installed by licensed hydraulic technicians and maintenance mechanics working on mobile equipment and industrial fluid systems. The fitting measures 2.09 inches in overall length and weighs 0.24 pounds.

The BVHC4-4M is suited for use on industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines requiring a threaded, pressure-rated fitting. Its 1/4 inch NPT thread size fits standard port connections found across a wide range of hydraulic components. The brass construction makes it appropriate for applications where corrosion resistance and machinability are priorities, including coolant and water service alongside hydraulic duty.

Key Features

• Maximum working pressure of 2,250 psi for reliable performance in hydraulic service
• Brass construction provides corrosion resistance suitable for hydraulic, water, and coolant lines
• NPT threaded connection type ensures compatibility with standard pipe thread ports
• Straight body shape simplifies inline hose-to-port connections
• 1/4 inch hose size and 0.25 inch coupler size for precise fitment in compact hydraulic circuits
• Parker Series H fitting for consistent dimensional and performance standards

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 1/4 inch NPT straight MPT fitting rated to 2,250 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Always depressurize and bleed down the hydraulic system before removing or installing fittings. Apply thread sealant appropriate for the system fluid and pressure rating to NPT threads before assembly. Inspect mating ports for damage or debris prior to installation and torque fittings according to the system designer or equipment manufacturer specifications.
