Parker BVHC16-16F Hydraulic Hose Valve Fitting 1750 Psi

Product Description

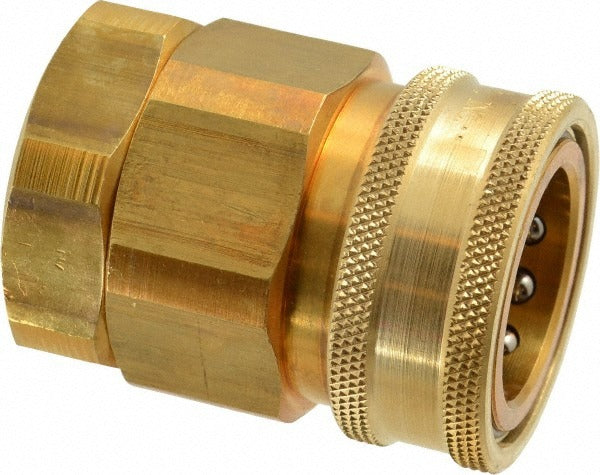

The PARKER BVHC16-16F is a straight hydraulic hose valve fitting designed for high-pressure fluid control in industrial and mobile equipment applications. Machined from brass with NPTF threaded connections, this Series H fitting handles working pressures up to 1,750 psi and operates across a temperature range of -35 degrees F to 250 degrees F. At 2.67 inches in overall length with a 1-inch body diameter, it is built for secure, leak-resistant connections in demanding hydraulic circuits. Licensed HVAC techs, plumbers, and hydraulic service professionals install this type of fitting as part of pressure-rated hose assemblies.

The BVHC16-16F is suited for use on industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines where a 1-inch NPTF threaded straight valve fitting is required. Its brass construction makes it compatible with systems where corrosion resistance and machinability are priorities. The straight body geometry simplifies routing in tight installations where angled fittings are not practical. This fitting is appropriate for both new installations and replacement work on existing hose assemblies requiring a 1-inch hose size and 1-inch thread size.

Key Features

• Rated to 1,750 psi maximum working pressure for high-pressure hydraulic service
• Brass construction provides corrosion resistance and reliable sealing
• NPTF threaded connection type for pressure-tight, dryseal thread engagement
• Straight body shape simplifies hose routing and assembly
• Operating temperature range of -35 degrees F to 250 degrees F
• Overall length of 2.67 inches with a 1-inch body diameter and 1-inch coupler size

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 1-inch straight NPTF brass hose valve fitting rated to 1,750 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and drain the hydraulic system completely before removing or installing any fittings. NPTF dryseal threads are designed to seal on thread engagement without sealant, but follow the system manufacturer and applicable fluid power standards for thread preparation and assembly practice. Inspect threads for damage before installation and do not overtighten, as brass fittings can be damaged by excessive torque.
