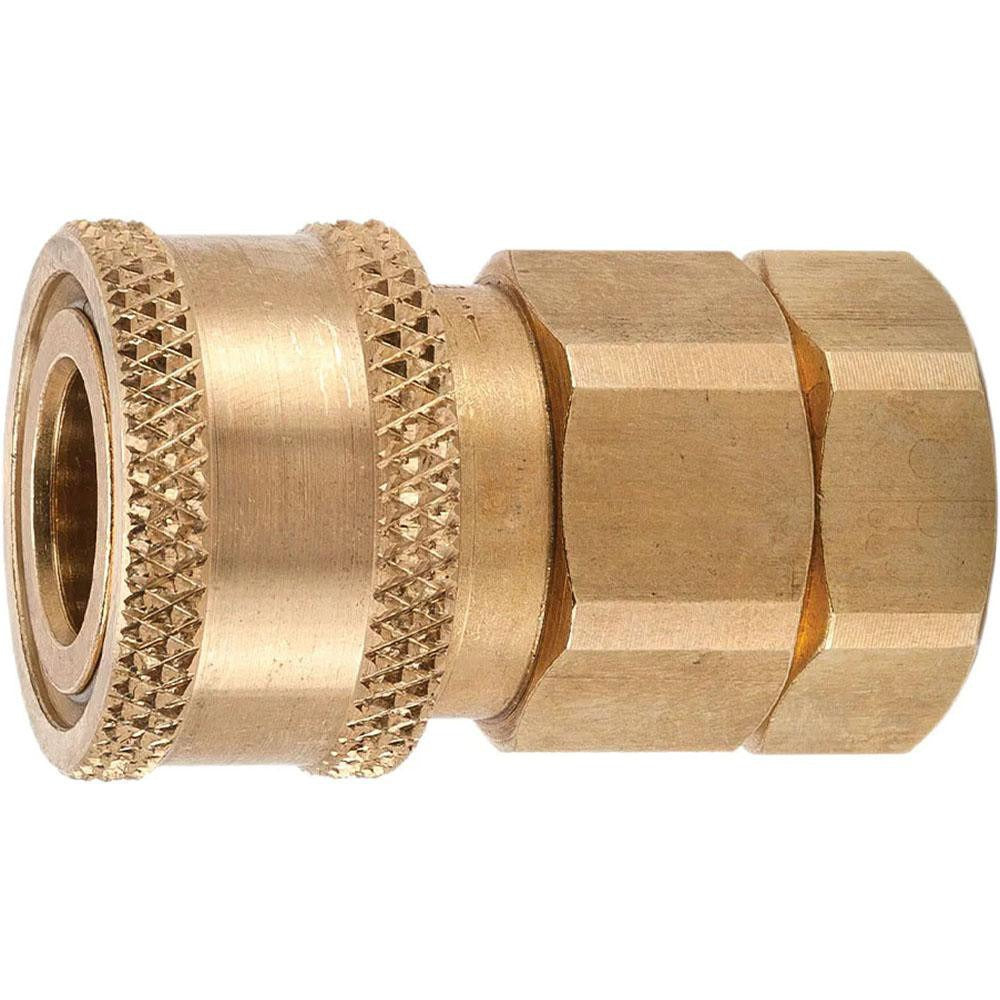

Parker BVHC12-12F Hydraulic Hose Valve Fitting 3/4 in 2000 Psi

Product Description

The PARKER BVHC12-12F is a straight hydraulic hose valve fitting designed for use in industrial and mobile hydraulic systems. Machined from brass with a 3/4 inch NPTF threaded connection, this Series H fitting provides a reliable, leak-resistant joint rated for up to 2,000 psi working pressure. It measures 2.42 inches in overall length and handles operating temperatures from -35 degrees F to 250 degrees F. Licensed plumbers, hydraulic system technicians, and mobile equipment mechanics install this type of fitting when connecting hose assemblies to valves, manifolds, or ported components where a tapered thread seal is required.

This fitting is suited for industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines operating within the rated pressure and temperature range. The NPTF thread form creates a pressure-tight metal-to-metal seal without requiring additional sealant in many applications, making it a common choice on high-cycle fluid-power systems where drip-free performance is critical. It is equally at home in stationary industrial machinery and in off-highway mobile equipment that demands compact, robust hardware.

Key Features

• 2,000 psi maximum working pressure for demanding hydraulic circuits
• Brass construction resists corrosion in water, coolant, and hydraulic fluid service
• 3/4 inch NPTF threaded connection provides a metal-to-metal pressure-tight seal
• Straight body shape simplifies inline hose-to-valve connections
• Wide temperature range: -35 degrees F to 250 degrees F
• Compact 2.42 inch overall length suits tight equipment envelopes

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 3/4 inch NPTF straight hose valve fitting rated to 2,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber familiar with NPTF threaded fittings and the applicable system pressure ratings. Depressurize and de-energize the hydraulic circuit completely before removing or installing any fittings. Inspect threads for damage before assembly; NPTF threads are designed for metal-to-metal sealing, but consult system documentation regarding the use of thread sealant for the specific fluid media. Torque to the equipment or hose manufacturer specifications and pressure-test the assembly before returning the system to service.
