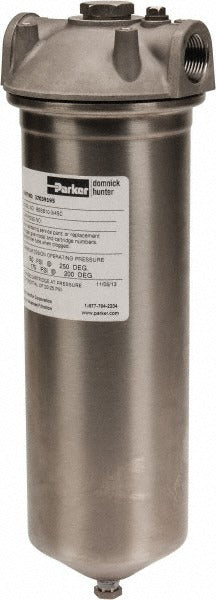

Parker BSSB10-3/4SD Cartridge Filter Housing 3/4 Inch Fnpt

Product Description

The PARKER BSSB10-3/4SD is a single-cartridge filter housing designed for inline liquid filtration in plumbing, HVAC, and light industrial water treatment systems. It accepts a 10-inch long filter cartridge and features 3/4-inch female NPT (FNPT) end connections for standard pipe integration. A built-in pressure relief mechanism allows safe cartridge changeouts without fully depressurizing the upstream line. The housing is constructed from 316-grade stainless steel, rated for a maximum working pressure of 150 psi and a maximum working temperature of 200 degrees F. Flow capacity is rated at 5 GPM. Licensed plumbers and HVAC technicians are the primary installers.

This filter housing is suited for residential and light commercial water filtration applications including point-of-entry water treatment, pre-filtration ahead of softeners or chillers, and inline protection of process equipment. The 3/4-inch FNPT connections match standard schedule 40 and schedule 80 pipe configurations. The 10-inch cartridge length accommodates the most widely available standard filter cartridge format, making media replacement straightforward in the field.

Key Features

• Built-in pressure relief for safe cartridge service under pressure
• 10-inch cartridge capacity with 3/4-inch FNPT inlet and outlet connections
• 316-grade stainless steel construction for corrosion resistance in water service
• 150 psi maximum working pressure rating
• 200 degrees F maximum working temperature
• 5 GPM maximum flow rate for residential and light commercial use

Compatibility

Designed as an OEM-style replacement or direct-install cartridge filter housing compatible with standard 10-inch filter cartridges in 3/4-inch FNPT piped systems.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before beginning installation or cartridge service. Use thread sealant tape or compound on all NPT connections and hand-tighten before applying wrench torque. Verify that system operating pressure and temperature do not exceed the rated maximums before returning the line to service.
