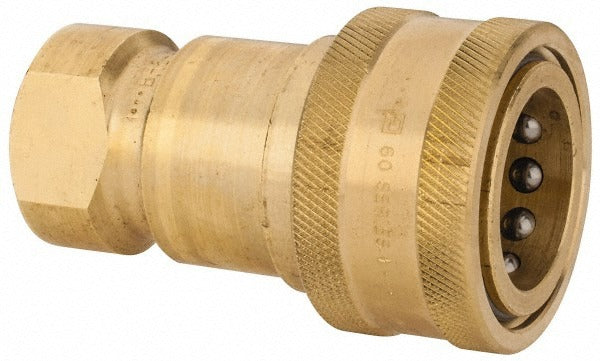

Parker BH6-60 Female Pipe Rigid Hydraulic Fitting 3/4 in

Product Description

The PARKER BH6-60 is a straight, female pipe rigid hydraulic fitting designed for use in high-pressure fluid and gas conveyance systems. Built from brass with an NPTF threaded connection, this Series 60 fitting handles working pressures up to 2,200 psi and temperatures ranging from -40 degrees F to 250 degrees F. At 3/4 inch hose size and 3/4 inch thread size, it is a common choice for connecting hydraulic hose assemblies to ports and manifolds in industrial and mobile equipment applications. Licensed plumbers, hydraulic technicians, and mechanical contractors are the primary installers.

This fitting is suited for a wide range of fluid handling systems including industrial hydraulic lines, mobile equipment hydraulics, food and chemical processing lines, gas lines, and water and coolant circuits. The brass body and NPTF thread form a pressure-tight mechanical seal without the need for additional sealant in most installations, making it well-suited for both stationary and mobile service environments where reliability under sustained pressure is required.

Key Features

• Brass construction provides corrosion resistance across a broad range of fluids and process chemicals
• NPTF thread form creates a dry-seal connection for leak-resistant performance
• 2,200 psi maximum working pressure rated for demanding hydraulic service
• Operating temperature range of -40 degrees F to 250 degrees F
• Straight body shape simplifies inline hose-to-port connections
• Meets ISO 7241-1, Series B standards for hydraulic quick-action couplings

Compatibility

Suitable for use with food and chemical processing lines, gas lines, industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines where a 3/4 inch NPTF female pipe rigid fitting is specified.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber. Depressurize and isolate the hydraulic or fluid system completely before removing or installing any fitting. Inspect thread condition on both mating components before assembly, and avoid cross-threading. Torque to the fitting manufacturer and system designer specifications as referenced in the applicable system service documentation.
