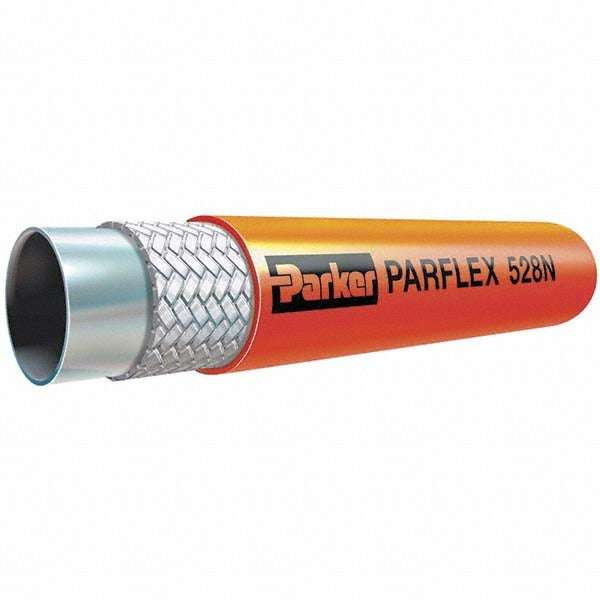

Parker BDKP88542 Thermoplastic Tube 4000 Psi 3/8 in Id 50 Ft

Product Description

The PARKER BDKP88542 is a thermoplastic hydraulic tube designed for high-pressure fluid transfer applications. Rated to 4000 psi maximum working pressure, this tube handles demanding service conditions across a wide temperature range of -40 to 212 degrees F. The 3/8 inch inside diameter and 0.65 inch outside diameter make it a compact, lightweight option for tight routing in equipment and machinery. Supplied in a 50-foot coil, it ships in orange for easy visual identification in multi-line installations. Plumbers, hydraulic technicians, and industrial service pros working with fluid power or chemical transfer systems are the primary installers.

This thermoplastic tube is suited for use in hydraulic systems, fluid transfer lines, and similar industrial or trade applications where flexible, pressure-rated tubing is required. The wide service temperature range makes it appropriate for both outdoor and indoor installations subject to temperature extremes. The 50-foot coil length provides enough material for most single-circuit runs without splicing. Its orange color aids in line identification during installation and troubleshooting.

Key Features

• 4000 psi maximum working pressure for high-pressure fluid service
• Temperature rating from -40 to 212 degrees F for broad environmental compatibility
• 3/8 inch ID x 0.65 inch OD thermoplastic construction
• 50-foot standard coil length minimizes splices on longer runs
• Orange color for visual line identification in multi-line systems

Compatibility

Designed as a flexible thermoplastic tube for hydraulic and fluid transfer applications requiring a 3/8 inch ID pressure-rated line rated to 4000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic or mechanical technician familiar with high-pressure fluid systems. Depressurize and isolate the system completely before cutting, fitting, or connecting tubing. Use fittings and ferrules rated to match or exceed the 4000 psi working pressure of this tube. Follow all applicable local and national codes for hydraulic and fluid transfer installations.
