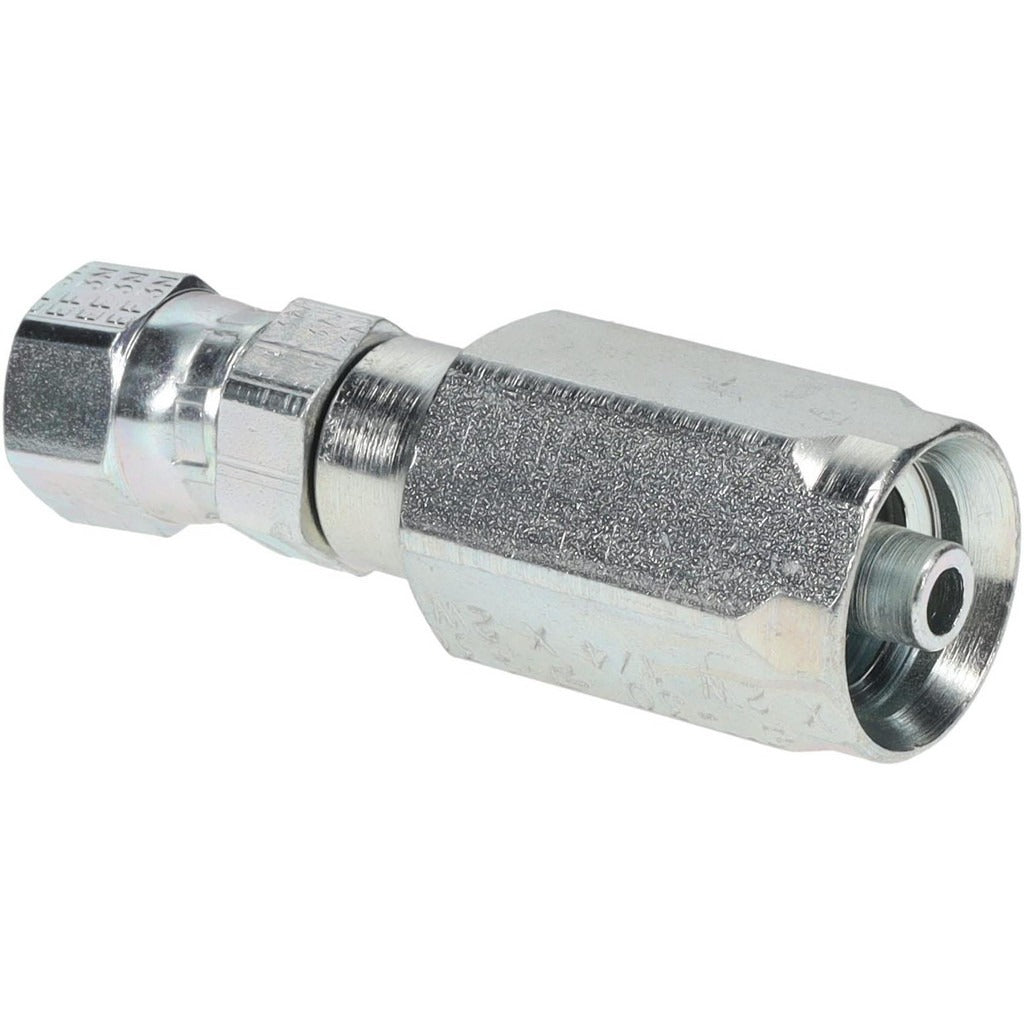

Parker BDKP38583 Female Jic 37 Deg Swivel Hose Fitting

Product Description

The PARKER BDKP38583 is a straight, female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. It accepts a 0.25-inch (1/4-inch) inside-diameter hose and terminates with a 7/16-20 threaded female JIC connection. The swivel design allows the fitting to rotate during installation, reducing hose twist and making routing easier in tight hydraulic circuits. Constructed from steel for durability under hydraulic system pressures, this fitting is a standard end-termination component installed by hydraulic technicians and maintenance mechanics on fluid-power systems.

This fitting is intended for use with Parker 302 Series hydraulic hose in Size 4 (1/4-inch ID) applications. It is suited for industrial and mobile hydraulic systems where a female JIC 37-degree swivel end connection is required at the hose end. The straight body orientation makes it appropriate for in-line connections where no angular offset is needed. Typical installation environments include hydraulic power units, mobile equipment, and industrial machinery requiring reliable, leak-resistant hose-to-port connections.

Key Features

• Female JIC 37-degree swivel seat provides a reliable metal-to-metal seal at the connection point
• Swivel construction reduces hose twist during assembly and routing
• Steel construction for strength in hydraulic fluid-power applications
• Straight body shape for direct in-line hose-to-port connections
• 7/16-20 thread size matches standard JIC hydraulic fittings
• Designed for use with Parker 302 Series hose, Size 4 (1/4-inch ID)

Compatibility

Designed for use with Parker 302 Series hydraulic hose, hose size 4, with a 0.25-inch inside diameter. The 7/16-20 female JIC 37-degree swivel thread is compatible with standard JIC male flare fittings and ports of the same thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and drain the hydraulic circuit completely before removing or installing any fittings or hose assemblies. Ensure thread engagement is clean and free of contamination before assembly. Follow the hose and fitting manufacturer's assembly instructions and applicable industry standards for proper swage or crimp termination if required at the hose end.
