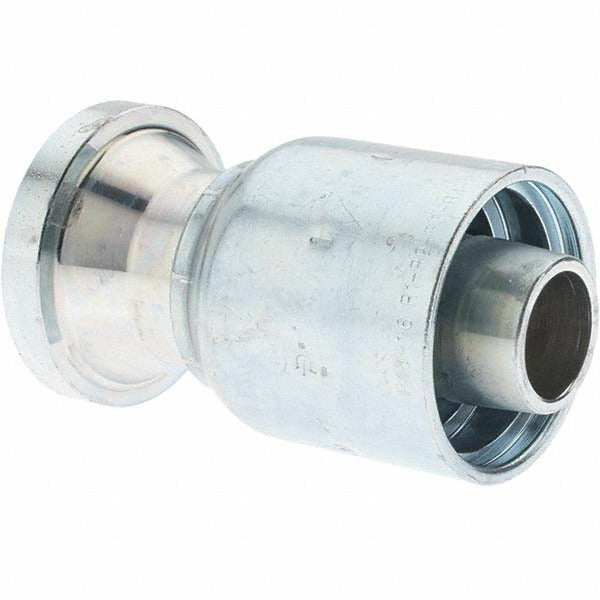

Parker BD11543-20-16-1 Code 61 Straight Hose Fitting

Product Description

The PARKER BD11543-20-16-1 is a Code 61 straight hydraulic hose fitting designed for high-pressure fluid power systems. Machined from steel with SAE-standard threaded connections, this fitting attaches directly to compatible hydraulic hoses at a 1-inch inside diameter (hose size 16) and accepts a 1-1/4-inch thread. The straight configuration simplifies inline routing without angular offset. At 3.19 inches overall length, it is a compact, purpose-built end fitting suited for industrial and mobile hydraulic circuits. Hydraulic technicians and fluid power mechanics install this component to terminate hose assemblies where a leak-free, high-integrity Code 61 flange or threaded interface is required.

This fitting is intended for use in hydraulic hose assemblies operating in industrial equipment, mobile machinery, and fluid power systems requiring Code 61 straight terminations. It conforms to ISO 12151-3-S-L, which governs dimensions and performance for hose fittings used in high-pressure hydraulic applications. The 1-inch ID bore accommodates hose size 16, a common sizing used in mid- to high-flow hydraulic circuits. The steel construction provides durability under sustained pressure cycling.

Key Features

• Code 61 straight fitting configuration for inline hose termination
• 1-inch hose inside diameter, compatible with hose size 16
• 1-1/4-inch SAE threaded connection
• 3.19 inches overall length for compact assembly integration
• Steel construction for pressure and mechanical durability
• Conforms to ISO 12151-3-L and California PROP 65 compliance requirements

Compatibility

Per manufacturer data, this fitting is for use with the following Parker hose series: 187 TC/ST, 302, 304, 387 TC/ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC/ST, 722 TC/ST, 787 TC/ST, 797 TC/ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power assembly practices. Depressurize and fully isolate the hydraulic circuit before disassembling any hose or fitting. Follow the hose manufacturer's assembly instructions for proper insertion depth and swaging or crimping procedures, as applicable. Verify thread engagement and fitting seating before returning the system to pressure.
