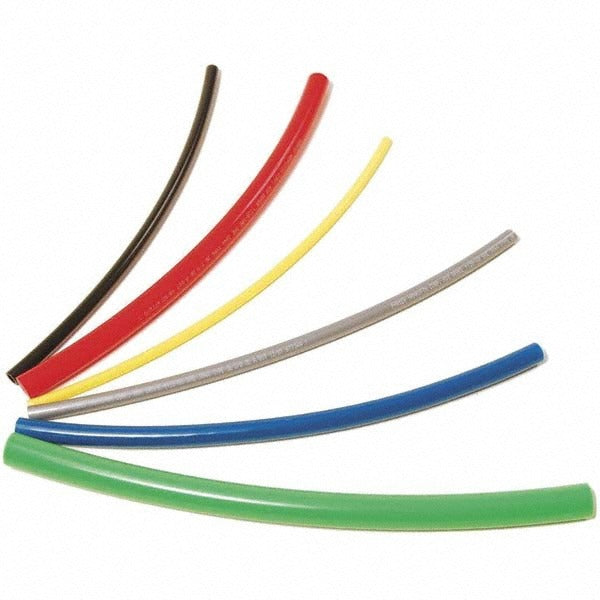

Parker BD10864-1 Nylon Tubing 150 Psi 100 Ft Black

Product Description

The PARKER BD10864-1 is a black nylon tubing product supplied in a 100-foot standard coil, designed for pneumatic, fluid transfer, and low-pressure hydraulic applications in industrial and mechanical systems. It has a 0.092-inch inside diameter and a 5/32-inch outside diameter, with a maximum working pressure rating of 150 psi. The tubing operates across a wide temperature range of -40 to 200 degrees F, making it suitable for both cold-environment routing and moderate-heat applications. Plumbers, HVAC technicians, and industrial mechanics install this tubing where a flexible, lightweight, and corrosion-resistant line is needed.

This nylon tubing is commonly used in pneumatic control lines, instrument air runs, low-pressure fluid transfer, and vacuum applications. Its small outside diameter and flexible construction make it easy to route through tight spaces in mechanical rooms, equipment panels, and field installations. The 100-foot coil length gives installers enough material to handle longer runs or multiple connections from a single roll without splicing.

Key Features

• 0.092-inch ID and 5/32-inch OD for compatibility with standard small-bore fittings
• 150 psi maximum working pressure rated for pneumatic and low-pressure fluid service
• Temperature range of -40 to 200 degrees F for cold-start and moderate-heat environments
• Nylon construction resists corrosion, abrasion, and many common chemicals
• 100-foot coil provides generous run length with minimal splicing
• Black color for UV resistance and general-purpose identification

Compatibility

Designed as an OEM-style and replacement nylon tubing for pneumatic control, instrument air, and low-pressure fluid transfer systems requiring a 5/32-inch OD small-bore tube.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, or industrial mechanics using standard tube cutters and compatible compression or push-to-connect fittings sized for 5/32-inch OD tubing. Depressurize and isolate any existing line before disconnecting or splicing. Avoid sharp bends below the minimum bend radius to prevent kinking and flow restriction. Follow applicable pneumatic or fluid system codes when routing and securing tubing in equipment panels or mechanical spaces.
