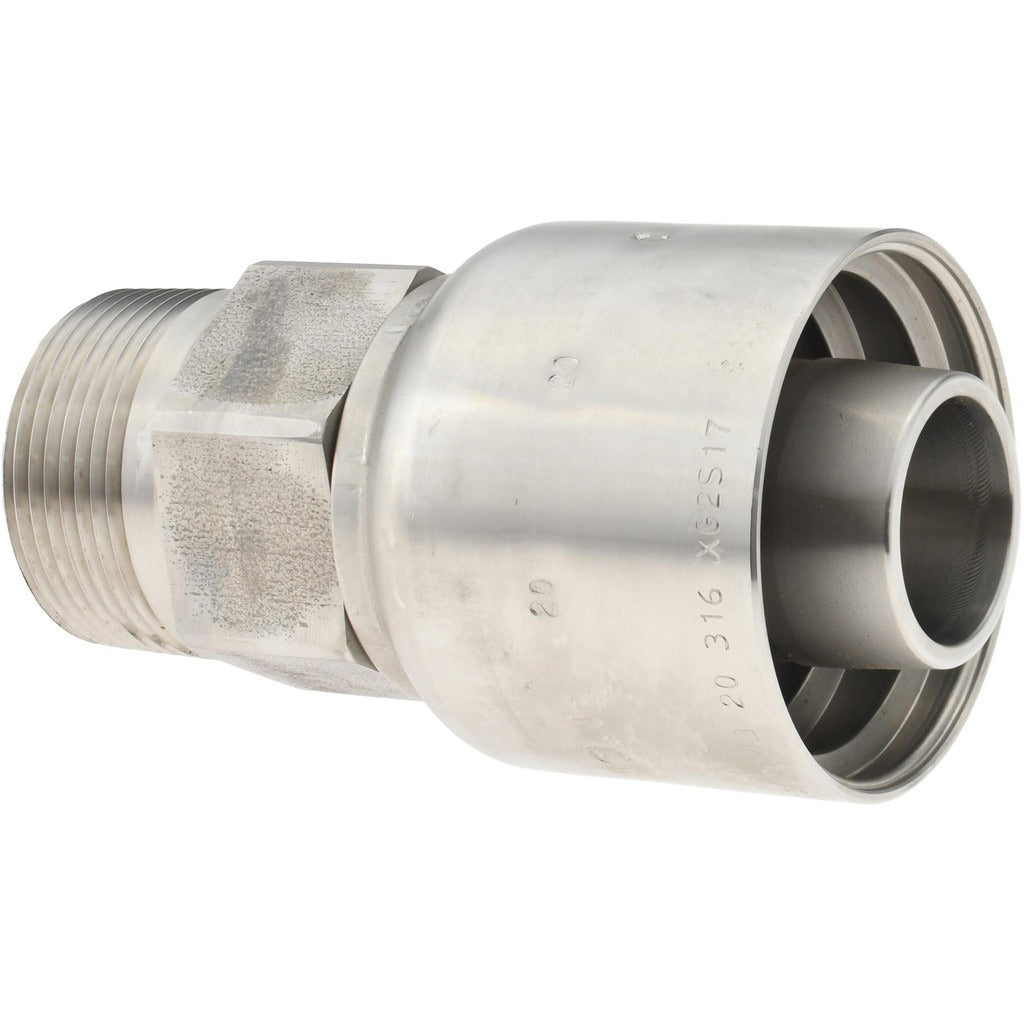

Parker BD1014320-20C-1 Male Pipe Rigid Hose Fitting Nptf

Product Description

The PARKER BD1014320-20C-1 is a male pipe rigid fitting designed for hydraulic hose assemblies requiring a secure, leak-resistant connection. Constructed from stainless steel, this fitting accepts a 20 mm hose and terminates with a 1-1/4-11-1/2 NPTF thread. The rigid style maintains a fixed orientation at the hose end, which suits installations where hose routing is fixed and rotation is not needed. NPTF thread form provides a dry-seal mechanical connection that does not rely on sealant tape alone, making it a reliable choice for moderate- to high-pressure hydraulic circuits. Licensed HVAC, plumbing, and fluid-power technicians will encounter this fitting type in hydraulic lines requiring corrosion-resistant material.

This fitting is suited for hydraulic systems that require stainless steel construction, typically in corrosive environments, wash-down applications, or systems handling fluids incompatible with carbon steel. The 20 mm hose size and 1-1/4-11-1/2 NPTF thread configuration place it in mid- to large-bore hydraulic circuits found in industrial equipment, mobile machinery, and fluid-power plumbing assemblies. It is installed by hydraulic system technicians or pipefitters working on fixed-line hydraulic plumbing where a rigid male pipe end is specified at the hose termination point.

Key Features

• Stainless steel construction for corrosion resistance in demanding service environments
• Male pipe rigid design maintains fixed hose orientation for controlled routing
• 1-1/4-11-1/2 NPTF thread provides a dry-seal connection at the pipe port
• 20 mm hose size suits mid- to large-bore hydraulic hose assemblies
• Single-piece rigid body eliminates swivel components that could loosen under vibration

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic hose assemblies requiring a 20 mm hose end with a 1-1/4-11-1/2 NPTF male pipe rigid connection in stainless steel.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. NPTF threads form a mechanical dry seal; inspect threads for damage before assembly and apply thread sealant per the system designer or equipment manufacturer guidance. Torque to the system specification sheet for the applicable hose and port size — do not over-torque stainless steel fittings as galling can occur.
