Parker BD-LG1015 Stem Adapter 3/16 Od 1/4 Mnpt 290 Psi

Product Description

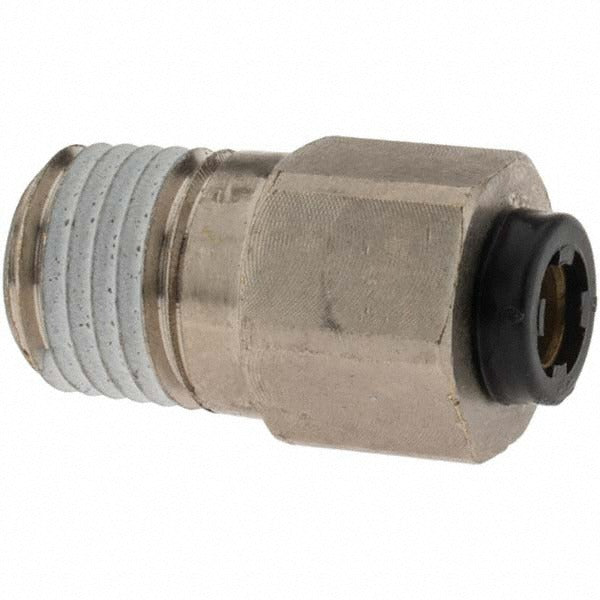

The PARKER BD-LG1015 is a push-to-connect stem adapter fitting that transitions a 3/16 inch OD tube to a 1/4 inch male NPT threaded port. The body is nickel-plated brass, rated for a maximum working pressure of 290 psi. The push-to-connect end accepts the tube without tools — insert the tube and the internal collet grips and seals automatically. This fitting is installed by HVAC technicians, plumbers, and fluid system mechanics wherever a quick, reliable tube-to-threaded-port connection is needed in pneumatic or liquid lines.

The BD-LG1015 suits residential and light commercial applications in pneumatic control lines, condensate systems, refrigeration ancillary circuits, and other fluid or air lines running 3/16 inch OD tubing. The fitting is rated for service from 5 degrees F to 155 degrees F, making it appropriate for indoor mechanical room environments and conditioned-space installations. It is sold in packages of 10, which suits service contractors stocking multiple fittings for recurring repair work.

Key Features

• Push-to-connect collet end accepts 3/16 inch OD tubing without tools
• 1/4 inch male NPT thread connects directly to threaded ports and manifolds
• Nickel-plated brass construction resists corrosion in wet and humid environments
• 290 psi maximum working pressure suits pneumatic and low-pressure fluid lines
• Operating temperature range of 5 degrees F to 155 degrees F
• Packaged in quantities of 10 for efficient service stock replenishment

Compatibility

Designed as an OEM-style replacement or service fitting for pneumatic control, HVAC, and fluid handling systems using 3/16 inch OD tubing with 1/4 inch NPT threaded ports.

Installation Notes

Installation is performed by licensed HVAC technicians, plumbers, or qualified mechanics. Depressurize and drain the line completely before removing any existing fitting. Ensure the 1/4 inch NPT male threads are wrapped with thread sealant tape per applicable plumbing or mechanical codes before threading into the receiving port. Insert tubing squarely into the push-to-connect end until it seats fully against the internal stop; to release, depress the collet ring while withdrawing the tube.
