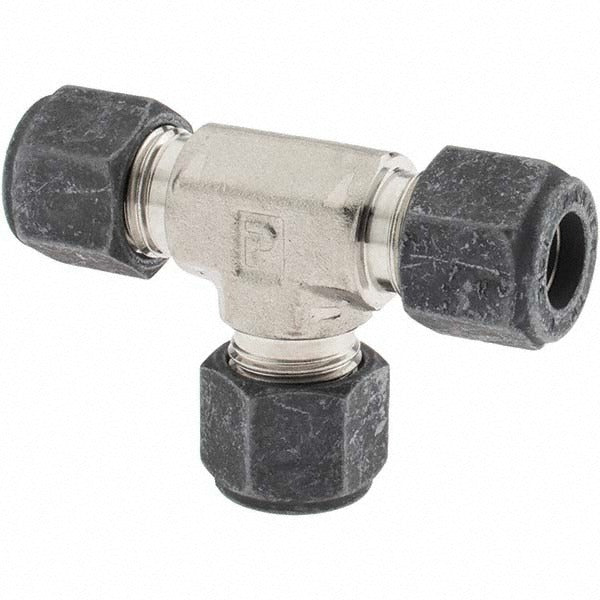

Parker BD-KP4413 Compression Tee Union 10000 Psi Ss

Product Description

The PARKER BD-KP4413 is a stainless steel compression tee union designed for high-pressure tubing systems requiring a three-way connection. It accepts compression fittings on all three ends, allowing a single inline tube run to branch off in a third direction without welding or flaring. Rated to 10000 psi maximum working pressure and suitable for temperatures ranging from -425 degrees F to 605 degrees F, this fitting is built for demanding industrial, instrumentation, and process piping applications. Licensed plumbers, pipefitters, and instrumentation technicians are the primary installers of this type of component.

This compression tee union is suited for use in high-pressure fluid and gas instrumentation lines, process control tubing systems, and industrial piping assemblies where a tee branch connection is required. The all-compression end connections make it compatible with standard compression tube setups, eliminating the need for soldering or welding at the joint. Its wide temperature range makes it appropriate for both cryogenic service down to -425 degrees F and elevated-temperature process environments up to 605 degrees F.

Key Features

• Three-way compression tee configuration allows inline branching without welding or flaring
• Maximum working pressure rated at 10000 psi for high-pressure system use
• Stainless steel construction for corrosion resistance in aggressive media and environments
• Wide service temperature range from -425 degrees F to 605 degrees F, covering cryogenic and high-heat applications
• All-compression end connections for tool-accessible, repeatable assembly and disassembly

Compatibility

Designed as an OEM-style compression tee union for use in high-pressure instrumentation and process tubing systems that utilize compression-style tube fittings.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified instrumentation technician familiar with high-pressure compression fitting assembly. De-pressurize and isolate the tubing system completely before disassembling or installing any compression fitting. Ensure tube ends are cut square, deburred, and fully seated before tightening compression nuts. Follow applicable codes including ASME B31.3 for process piping when applicable.
