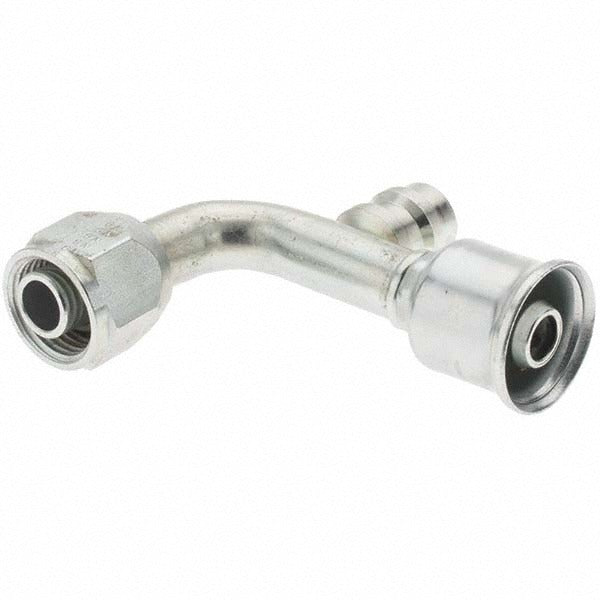

Parker BD-KP103624 Hydraulic Hose Fitting 90 Degree Elbow

Product Description

The PARKER BD-KP103624 is a 90-degree elbow hydraulic hose fitting designed for use in hydraulic fluid conveyance systems. Machined from steel, this fitting connects an 8 mm hose end to a 3/4-16 threaded port, redirecting flow at a right angle to route hoses around obstructions or tight chassis spaces. The hose inner diameter is 13/32 inches, suited to match standard hydraulic hose assemblies at this size range. Licensed technicians and hydraulic system assemblers use this type of fitting when building or repairing high-pressure hydraulic circuits in mobile equipment, industrial machinery, and power units.

This fitting is applicable in hydraulic systems where a 90-degree directional change is needed at a hose-to-port connection. It suits installations on mobile equipment, agricultural machinery, construction equipment, and industrial hydraulic power units where straight hose routing is not practical. The 3/4-16 thread size is a common SAE straight thread configuration, making this fitting compatible with a wide range of hydraulic valves, cylinders, and manifold ports that use this thread standard.

Key Features

• 90-degree elbow configuration for right-angle hose routing in tight or complex installations
• Steel construction for durability in high-pressure hydraulic environments
• 8 mm hose size with 13/32 inch hose diameter for precise hose compatibility
• 3/4-16 thread size matches common SAE straight thread hydraulic port standards
• Compact form factor suited for space-constrained equipment bays and chassis routing

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring an 8 mm hose size and a 3/4-16 threaded port connection with a 90-degree elbow configuration.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with hydraulic system safety practices. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect thread condition on both the fitting and the port before assembly, and ensure thread type and pitch are confirmed to match before applying torque. Follow equipment manufacturer service documentation and applicable industry standards for hydraulic fitting assembly procedures.
