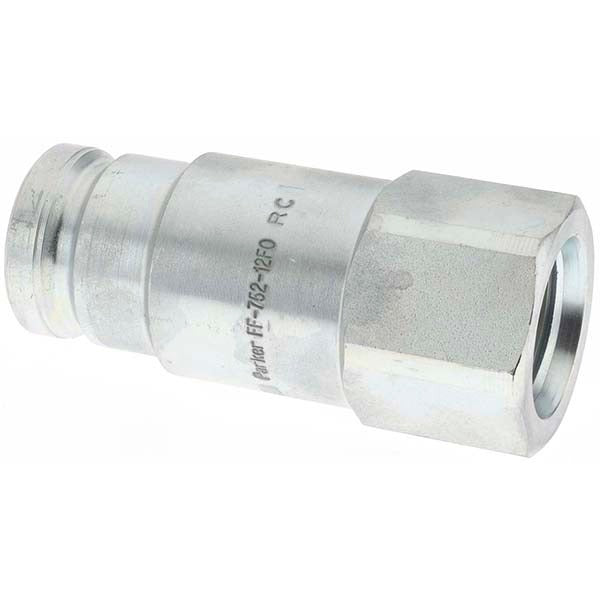

Parker BD-FF-75212FO-1 Hydraulic Hose Nipple 3/4 in

Product Description

The PARKER BD-FF-75212FO-1 is a female straight thread nipple designed for hydraulic hose assemblies operating at pressures up to 3,000 psi. Manufactured from steel with a UNF thread form, this fitting accepts a 3/4 inch hose and threads at 1-1/16-12. It is part of the FF series and is built for use in hydraulic systems where secure, leak-resistant connections are required. Installation is performed by hydraulic technicians and fluid power specialists working on mobile or industrial equipment where consistent thread engagement and pressure integrity are critical.

This fitting is suited for hydraulic circuits in mobile machinery, industrial equipment, and fluid power systems requiring a female straight thread nipple at the hose end. The 3/4 inch hose size and 1-1/16-12 thread make it applicable in medium-pressure hydraulic lines where a maximum flow rate of 28 gallons per minute is required. It is a threaded connection style, compatible with mating ports and adapters using the same UNF thread specification.

Key Features

• Maximum working pressure of 3,000 psi for medium-duty hydraulic applications
• Female straight thread nipple design for secure, reliable port connections
• Steel construction for durability in demanding hydraulic environments
• UNF thread form with 1-1/16-12 thread size for positive engagement
• Maximum flow rate of 28 gallons per minute
• Overall length of 3.58 inches for compact installation in tight spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic hose assemblies using 3/4 inch hose ends with a 1-1/16-12 UNF female straight thread connection in systems rated up to 3,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic system completely before removing or installing any fittings. Inspect mating threads for damage or contamination before assembly and ensure thread engagement is complete to achieve the rated pressure seal. Do not exceed the 3,000 psi maximum working pressure rating of this fitting.
