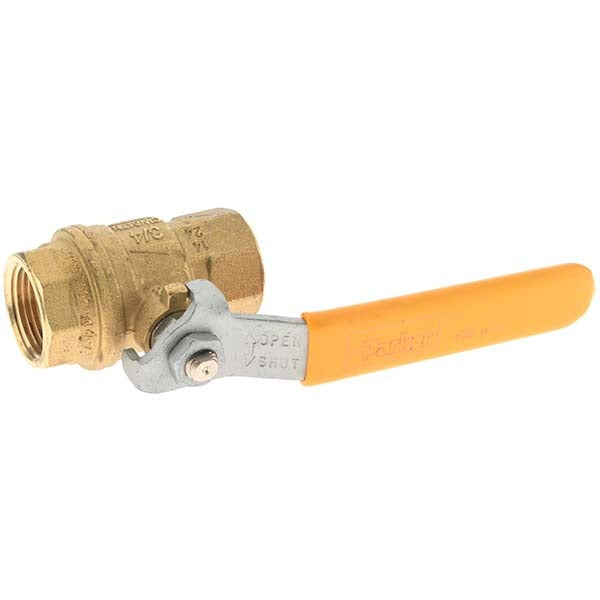

Parker BD-BV-0773-1 Full Port Ball Valve 3/4 in Npt

Product Description

The PARKER BD-BV-0773-1 is a full port manual ball valve designed for 3/4 inch NPT pipe connections. The full port design delivers unrestricted flow by matching the valve bore to the pipe interior diameter, minimizing pressure drop across the valve. The bronze body provides corrosion resistance suited to water, steam, and hydronic applications. A reinforced PTFE seat reduces friction and supports reliable shutoff across a broad range of service conditions. Licensed plumbers and HVAC technicians install this valve as an isolation or shutoff point in piping systems.

This ball valve is appropriate for residential and light commercial plumbing, hydronic heating, compressed air, and general fluid service lines where a 3/4 inch NPT threaded connection is required. The lever handle allows for quick quarter-turn operation, making it practical in tight mechanical rooms or utility spaces where fast manual shutoff is needed. It is suitable for new installations and replacement applications on threaded pipe systems.

Key Features

• Full port bore maintains pipe flow diameter and minimizes pressure drop
• Bronze body construction for corrosion resistance in wet and hydronic service
• Reinforced PTFE seat material for low-friction, reliable shutoff
• 3/4 inch NPT end connections for standard threaded pipe assembly
• Quarter-turn lever handle for fast open and close operation

Compatibility

Designed as an OEM-style replacement or new-install ball valve for 3/4 inch NPT threaded piping systems in plumbing, HVAC hydronic, and general fluid service applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local plumbing codes and the IPC. Shut off the water or fluid supply and relieve system pressure before removing or installing any valve. Use appropriate pipe thread sealant or PTFE tape on NPT threads and do not overtighten. Verify flow direction and confirm the valve is in the fully open or fully closed position before returning the system to service.
