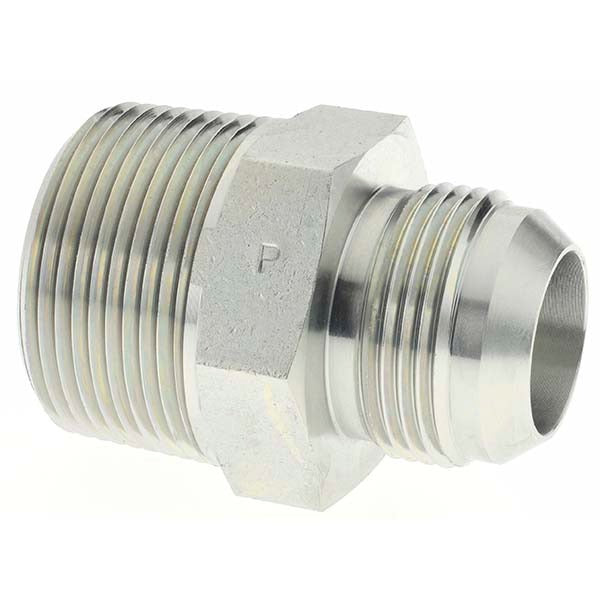

Parker BD-712102 Steel Flared Tube Connector 1 in Od Nptf

Product Description

The PARKER BD-712102 is a steel flared tube connector designed for hydraulic fluid and gas handling connections in demanding industrial and trade applications. It features a 37-degree flare angle with a Flare x NPTF end configuration, accepting a 1-inch tube OD and a 1-1/4-11-1/2 NPTF thread. Rated to 3000 psi maximum working pressure and capable of handling temperatures up to 500 degrees F, this connector is built for high-pressure fluid and gas line assemblies. It meets ISO 8434-2, SAE 070102, and SAE J514 standards, making it a code-compliant choice for hydraulic system work.

This connector is suited for hydraulic and pneumatic line assemblies in commercial and industrial settings where reliable high-pressure connections are required. Typical applications include hydraulic fluid circuits and gas handling systems where a flare-to-NPTF transition is needed. It is installed by hydraulic system technicians, pipefitters, and plumbers working on pressurized fluid or gas handling lines.

Key Features

• 37-degree flare angle with Flare x NPTF end connections for secure, leak-resistant joints
• Rated to 3000 psi maximum working pressure for high-pressure hydraulic and gas service
• Operates in temperatures up to 500 degrees F
• Steel construction for strength and durability in demanding applications
• Meets ISO 8434-2, SAE 070102, and SAE J514 standards
• 1-inch tube OD with 1-1/4-11-1/2 NPTF thread for common hydraulic line sizing

Compatibility

Designed for hydraulic fluid and gas handling connections requiring a 1-inch tube OD flare fitting with a 1-1/4-11-1/2 NPTF port. Suitable for use in systems where SAE J514 and ISO 8434-2 compliant fittings are specified.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter familiar with high-pressure fluid systems. Depressurize and isolate the hydraulic or gas circuit fully before removing or installing any fittings. Use appropriate flare tooling to ensure the tube end meets the 37-degree flare specification before assembly. Follow applicable industry standards and system manufacturer guidelines for assembly torque and leak testing procedures.
