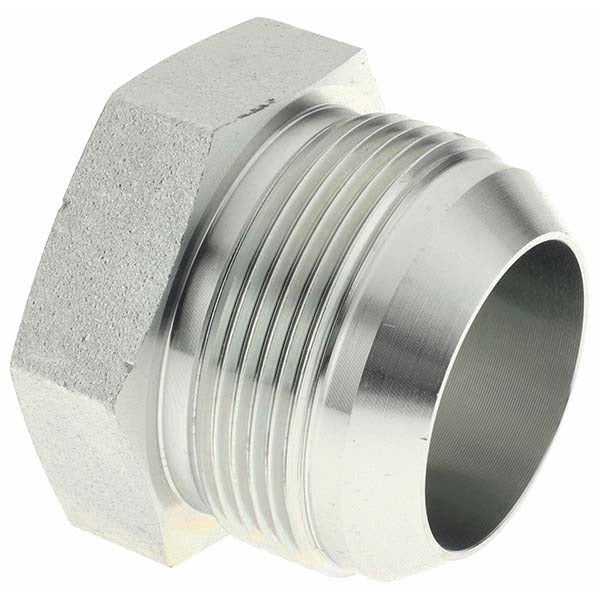

Parker BD-24 PNTX-S-1 Steel Flared Tube Plug 1-1/2 in

Product Description

The PARKER BD-24 PNTX-S-1 is a steel flared tube plug designed to seal 1-1/2 inch OD hydraulic and gas handling lines using a 37-degree flare end connection. This plug terminates open tube ends cleanly and securely, preventing fluid loss, contamination, and pressure drop in hydraulic circuits. Rated to 4000 psi maximum working pressure and 500 degrees F maximum working temperature, it handles demanding industrial hydraulic and gas handling applications. Installation is performed by hydraulic technicians and pipefitters during system maintenance, line capping, or circuit reconfiguration. The plug meets ISO 8434-2, SAE J514, and SAE 070109 standards.

This plug is suited for use in hydraulic fluid and gas handling connection systems where a 37-degree flare fitting interface is required. The 1-1/2 inch tube OD sizing fits medium-to-large bore hydraulic lines common in industrial machinery, mobile equipment, and heavy-duty fluid power systems. It is a single-piece plug, supplied individually, making it practical for service kits and field repair applications where a quick, reliable line cap is needed.

Key Features

• 37-degree flare end connection seals directly onto standard JIC and SAE flared tube ends
• 4000 psi maximum working pressure for high-pressure hydraulic circuit applications
• 500 degrees F maximum working temperature rating for high-heat environments
• Steel construction provides durability in hydraulic fluid and gas service
• Meets ISO 8434-2, SAE J514, and SAE 070109 standards for flared fittings
• 1-1/2 inch tube OD sizing with an overall length of 1.65 inches

Compatibility

Designed for use with hydraulic fluid and gas handling connections requiring a 37-degree flare plug in 1-1/2 inch tube OD configurations, conforming to ISO 8434-2, SAE J514, and SAE 070109 flared fitting standards.

Installation Notes

Installation is performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the hydraulic or gas line completely before removing any fittings or installing this plug. Use the appropriate flare fitting wrench and torque to the fitting manufacturer's recommended specification for the line size. Inspect the flare seat for damage or debris before seating the plug to ensure a leak-free connection.
