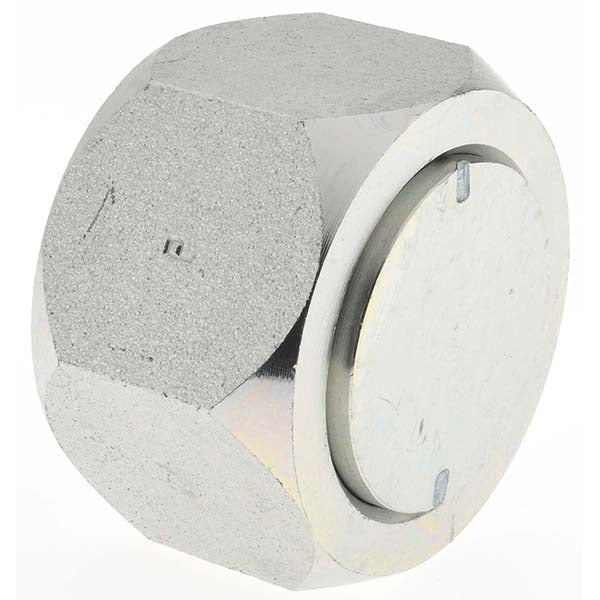

Parker BD-24 FNTX-S-1 Steel Flared Tube Cap 1-1/2 in Od

Product Description

The PARKER BD-24 FNTX-S-1 is a steel flared tube cap designed to seal the open end of a 1-1/2 inch OD flared tube line. The fitting uses a 37-degree flare end connection, conforming to SAE J514 and ISO 8434-2 standards. It is rated for a maximum working pressure of 3000 psi and a maximum working temperature of 500 degrees F, making it suitable for demanding hydraulic, pneumatic, and fluid power applications. Weighing just 0.01 pounds, this compact cap is a single-piece fitting used by hydraulic technicians, plumbers, and fluid system mechanics to cap off unused or temporary line ends during service or system modification.

This tube cap is appropriate for use in industrial, commercial, and trade fluid power systems where a 37-degree flare connection standard is specified. Typical applications include capping hydraulic lines, fuel lines, and high-pressure fluid circuits during maintenance, system testing, or phased installation. The 37-degree JIC flare configuration is a widely used standard in hydraulic and refrigeration-adjacent plumbing, making this cap a common service item in both shop and field environments.

Key Features

• 37-degree flare end connection per SAE J514 and ISO 8434-2
• Steel construction for high-pressure and high-temperature service
• Rated to 3000 psi maximum working pressure
• Rated to 500 degrees F maximum working temperature
• 1-1/2 inch outside diameter tube fitment
• Overall length of 1.7 inches

Compatibility

Designed for use with 1-1/2 inch OD tubing with a 37-degree flare end connection, conforming to SAE J514 and ISO 8434-2 standards.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and isolate the fluid circuit completely before installing or removing any fitting. Hand-tighten first, then wrench-tighten using standard flare fitting practices. Do not overtighten, as this can damage the flare seat and compromise the seal.
