Parker BD-1XA7716-16-1 Straight Caterpillar Flange Fitting

Product Description

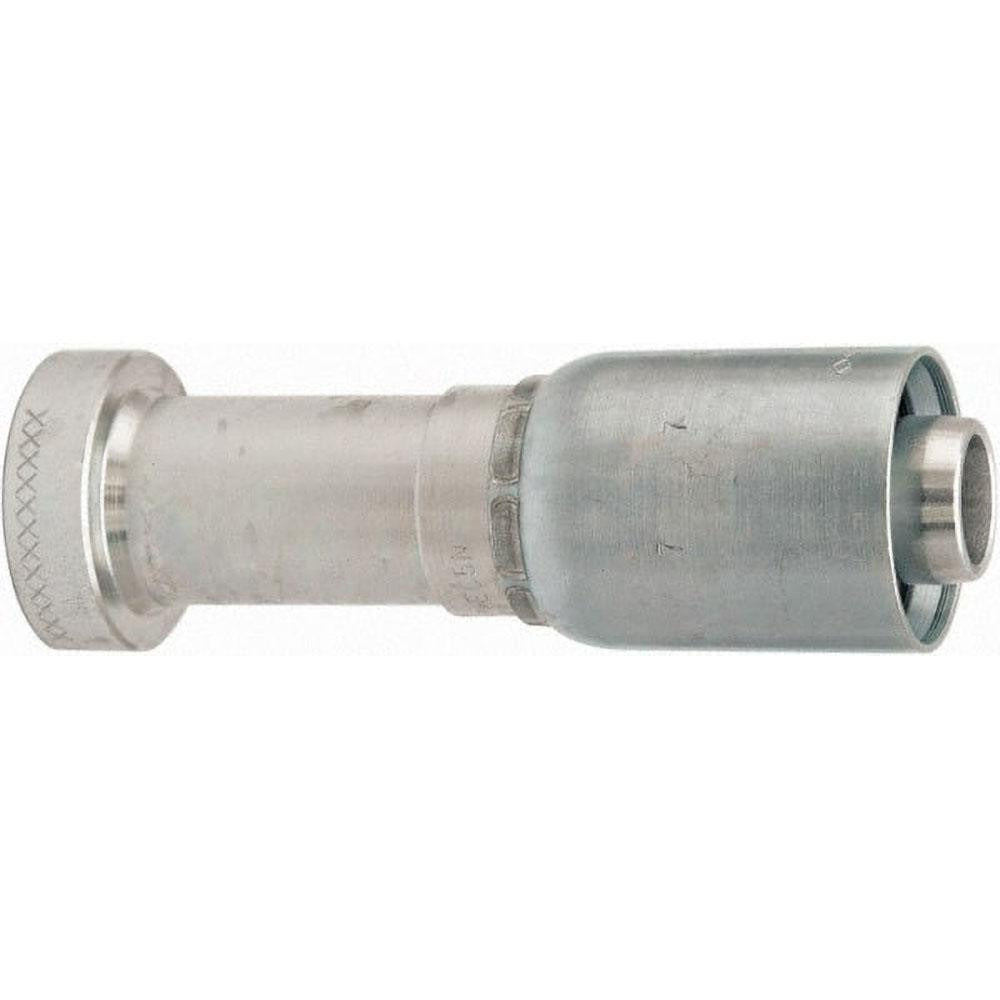

The PARKER BD-1XA7716-16-1 is a straight Caterpillar flange fitting designed for use in hydraulic hose assemblies. It features a 1-inch inside diameter and belongs to Parker Series 77, engineered for compatibility with 787TC and 797TC hydraulic hose. Constructed from steel with a female JIC threaded connection, this fitting delivers the durability and pressure integrity demanded in hydraulic systems. It is installed by hydraulic technicians and mobile equipment service professionals working on heavy equipment and industrial hydraulic circuits.

This fitting is suited for applications requiring a straight Caterpillar flange end in hydraulic hose assemblies. Its threaded female JIC shaft type makes it appropriate for heavy-duty mobile equipment and industrial hydraulic lines where a secure, leak-free connection is critical. The hose size designation is 16, corresponding to a 1-inch hose inside diameter, making it a direct-fit component in systems built around Parker 787TC and 797TC hose.

Key Features

• Straight Caterpillar flange fitting design for direct hose termination
• 1-inch inside diameter matches hose size 16 specifications
• Steel construction for high-pressure hydraulic service
• Female JIC threaded connection for secure, leak-resistant assembly
• Parker Series 77 fitting for use with 787TC and 797TC hose

Compatibility

Designed for use with Parker 787TC and 797TC hydraulic hose in Series 77 hose assemblies requiring a straight Caterpillar flange fitting with a 1-inch inside diameter.

Installation Notes

Hydraulic fittings of this type are installed by qualified hydraulic technicians or heavy equipment mechanics. Always depressurize and bleed down the hydraulic system fully before disconnecting or installing any hose fitting. Verify hose inside diameter and series compatibility before assembly. Follow the equipment manufacturer and Parker assembly guidelines for proper ferrule swaging or field-attachable installation procedures.
