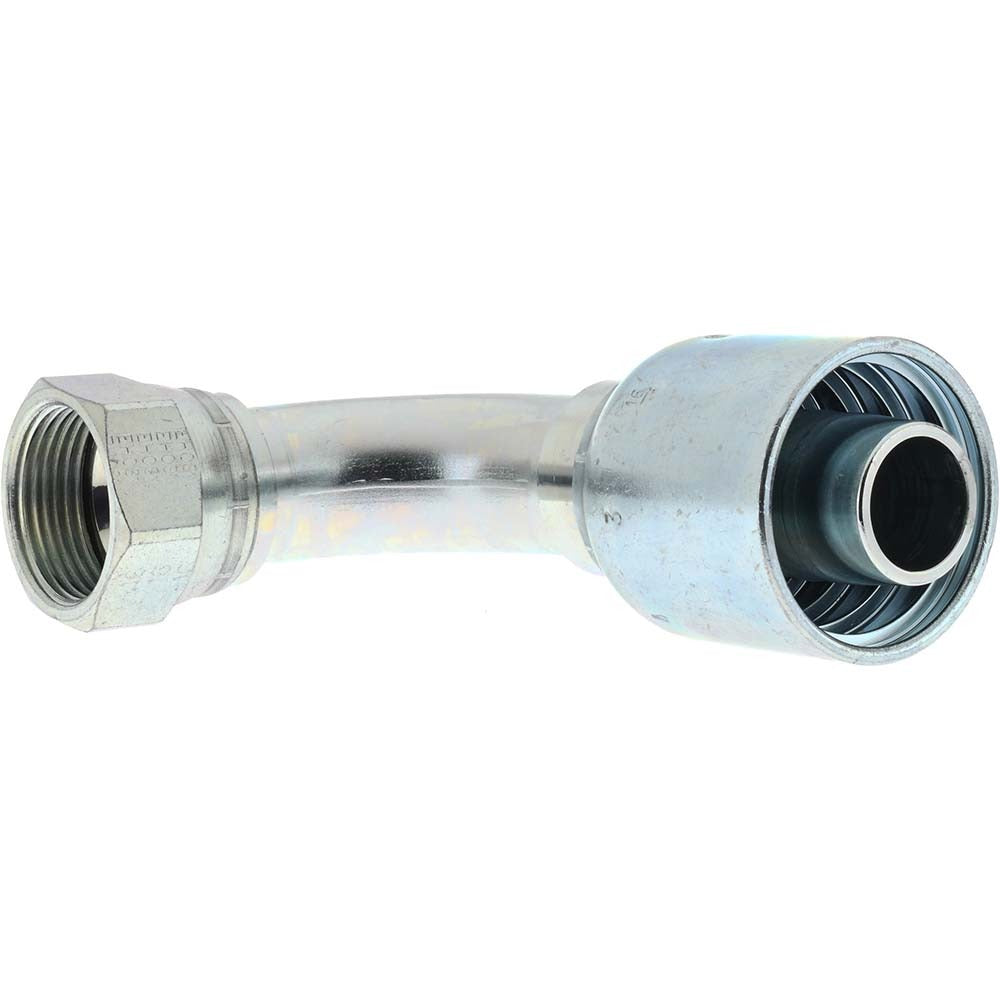

Parker BD-1L94316-16-1 Hydraulic Hose Swivel Fitting

Product Description

The PARKER BD-1L94316-16-1 is a steel hydraulic hose swivel fitting designed for use in high-pressure hydraulic systems. It features a 16 mm hose size with a 1-inch hose diameter and a 1-5/16-12 inch thread size. The swivel design allows the hose to rotate freely at the connection point, reducing torsional stress on the hose assembly and minimizing the risk of line fatigue or leakage. This fitting is installed by hydraulic system technicians and mechanics working on mobile equipment, industrial machinery, and fluid power assemblies where hose routing and articulation are critical factors.

This fitting is suited for hydraulic hose assemblies requiring a swivel end connection in residential, commercial, and industrial fluid power applications. It is commonly used on mobile equipment such as construction and agricultural machinery, as well as stationary hydraulic power units where hose movement or vibration is present. The steel construction provides durability in demanding service environments. This part is sold and packaged individually.

Key Features

• Swivel design allows hose rotation at the connection, reducing torsional stress on the assembly
• Steel construction for strength and durability in high-pressure hydraulic service
• 16 mm hose size with 1-inch hose diameter for compatibility with standard hydraulic hose assemblies
• 1-5/16-12 inch thread size for secure, leak-resistant connection
• Sold individually for single-point replacement or new assembly builds

Compatibility

Designed as an OEM-style replacement or new-build component for hydraulic hose assemblies requiring a 16 mm swivel fitting with a 1-5/16-12 inch thread connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power systems. Depressurize and fully isolate the hydraulic circuit before removing or installing any fittings to prevent injury from pressurized fluid release. Use appropriate thread sealant or fittings-compatible compound as required by system specifications, and verify thread engagement is complete before returning the system to service. Inspect the mating hose end and adjacent components for wear or damage prior to assembly.
