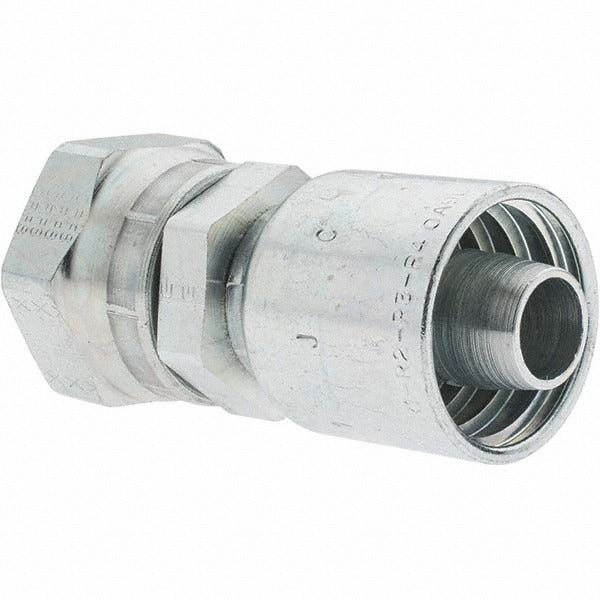

Parker BD-1JC43-1612-1 Seal-lok Swivel Hose Fitting

Product Description

The PARKER BD-1JC43-1612-1 is a female Seal-Lok swivel short hydraulic hose fitting designed for high-pressure fluid transfer connections in hydraulic systems. Manufactured from steel, this straight-configuration fitting accepts a 3/4-inch (12 mm) hose inside diameter and uses a 1-inch threaded connection. The Seal-Lok interface provides a leak-free face seal that does not rely on thread engagement for sealing, making it a reliable choice in mobile, industrial, and stationary hydraulic applications. Hydraulic technicians and industrial mechanics install this fitting when terminating or replacing end connections on hydraulic hose assemblies.

This fitting is designed for use in Series 43 hydraulic hose assemblies and is compatible with a wide range of Parker hose series. It suits residential and commercial hydraulic equipment installations where a female swivel short end is required. The straight shape simplifies routing in tight plumbing runs, and the threaded connection type allows field assembly with standard hydraulic fitting tools. This part is sold individually with a minimum order quantity of one.

Key Features

• Female Seal-Lok swivel interface provides a face-seal connection that minimizes leak paths under pressure cycling
• Straight shape supports direct inline hose termination without angled adapters
• Steel construction for durability in industrial hydraulic environments
• Threaded connection type compatible with standard hydraulic plumbing practices
• Overall length of 2.83 inches (72 mm) for compact installation clearance
• Meets California PROP 65 and ISO 12151-1-SWSA standards

Compatibility

Designed for use with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with face-seal fitting assembly. Depressurize and isolate the hydraulic circuit completely before disassembling any hose end or fitting. Use appropriate hydraulic fitting wrenches and follow ISO 12151-1-SWSA assembly guidance for proper swivel nut torque and sealing surface inspection. Inspect the Seal-Lok face seal and mating port for nicks or contamination before making up the connection.
