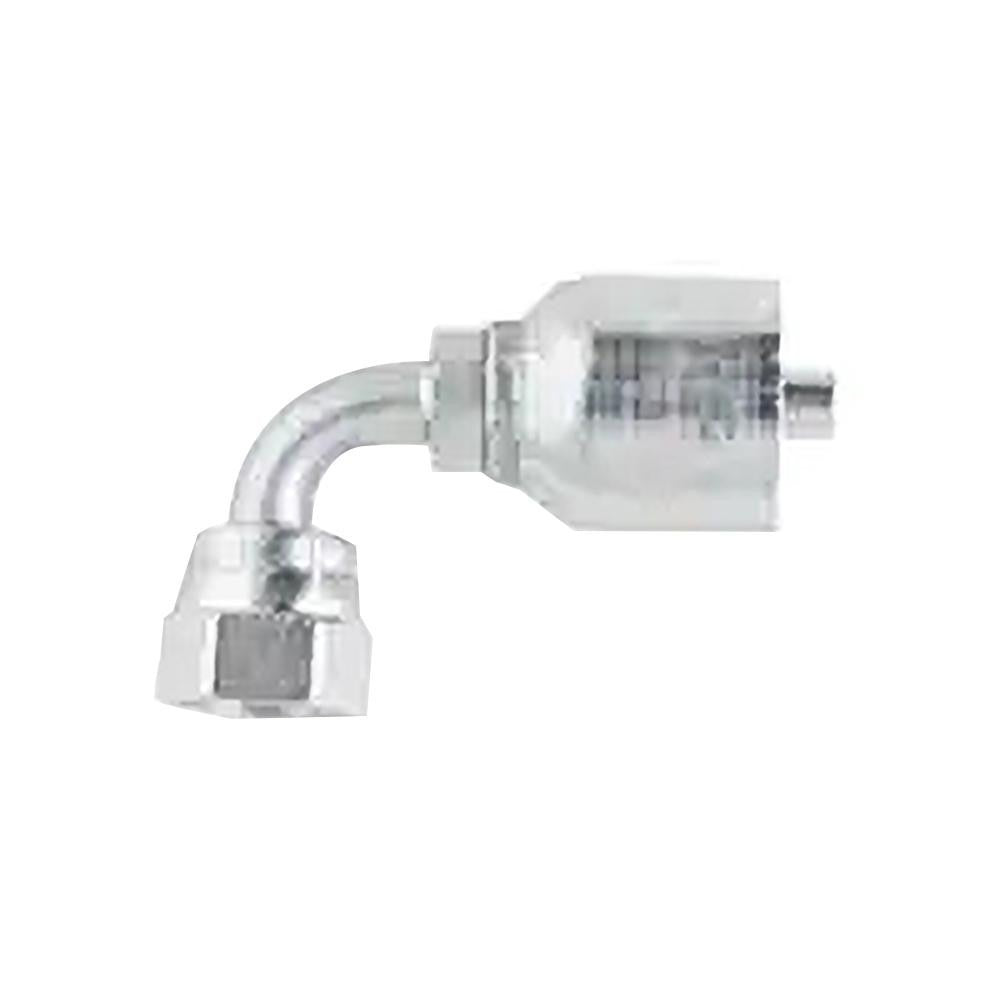

Parker BD-1J97712-12-1 Hydraulic Hose Fitting 90 Elbow

Product Description

The PARKER BD-1J97712-12-1 is a short-drop female Seal-Lok swivel 90-degree elbow fitting designed for high-pressure hydraulic hose assemblies. Constructed from steel, this fitting accepts a 0.75-inch inner diameter hose and uses a 1-3/16-12 threaded connection with a Seal-Lok interface for leak-free, face-seal performance. Rated to 6,000 psi, it is built for demanding hydraulic circuits where a compact 90-degree transition with swivel movement is required. The short-drop configuration keeps the elbow profile tight to the port, reducing clearance issues in confined installations. Licensed hydraulic technicians and industrial mechanics are the primary installers of this fitting.

This fitting is designed for use with PARKER 787TC and 797TC hydraulic hose. It is suited for mobile equipment, industrial machinery, and other hydraulic systems that require a 90-degree directional change at a hose-end termination. The swivel feature allows the hose to be routed without inducing torsional stress on the assembly, which is critical during initial assembly and in applications with dynamic movement. The Seal-Lok face-seal design is compatible with ISO 12151-1-SWES90 standards, making it appropriate for both domestic and internationally specified systems.

Key Features

• 6,000 psi working pressure rating for high-pressure hydraulic circuits
• Short-drop 90-degree elbow profile minimizes clearance requirements at the port
• Female Seal-Lok face-seal interface reduces the risk of leakage versus tapered-thread designs
• Swivel design prevents torsional stress on the hose during routing and assembly
• Steel construction for durability in demanding hydraulic environments
• Meets ISO 12151-1-SWES90 standard for hydraulic fluid power hose fittings

Compatibility

Designed for use with PARKER 787TC and 797TC hydraulic hose. Threaded connection size is 1-3/16-12 with a 12 mm metric reference and 0.75-inch hose inner diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and bleed the hydraulic system completely before removing or installing any hose fittings. Inspect the face-seal surface and O-ring for damage before assembly, and ensure the mating port surface is clean and free of burrs. Torque to the fitting manufacturer's specification using the correct crowfoot or open-end wrench — do not use pipe-thread sealants on Seal-Lok face-seal connections.
