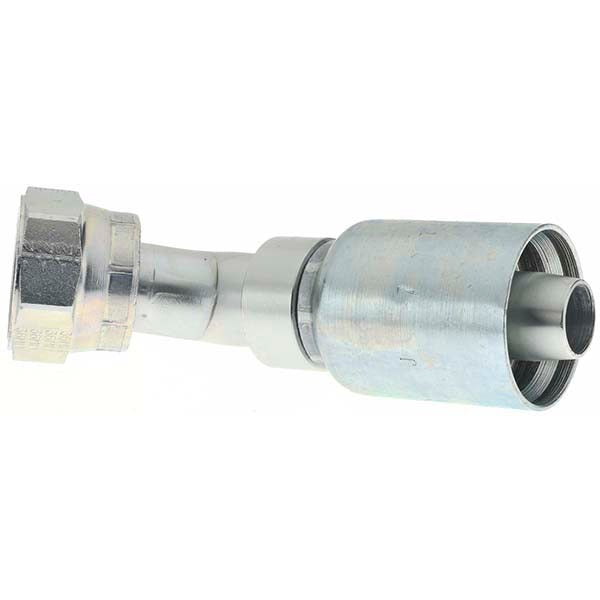

Parker BD-1J7771212-1 Hydraulic Hose Fitting 45 Elbow

Product Description

The PARKER BD-1J7771212-1 is a 45-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic plumbing assemblies. Manufactured from steel, this fitting features a Seal-Lok face seal connection and threaded interface with a 1-3/16-12 thread size. It is sized for 0.75 inch (12 mm) inside diameter hose, corresponding to a hose size 12 designation. Licensed hydraulic technicians and fluid power specialists install this fitting in mobile equipment, industrial machinery, and other hydraulic circuit applications where a reliable, leak-resistant 45-degree directional change is required at a hose-to-port junction.

This fitting is intended for hydraulic plumbing installations where a 45-degree angled hose termination is needed to route hose runs within tight or angled geometries. The Seal-Lok face seal design provides a positive metal-to-metal seating surface that minimizes leakage risk under dynamic pressure conditions. It is compatible with Parker 787TC and 797TC hose series and conforms to ISO 12151-1-SWE45, making it suitable for assemblies that must meet international hydraulic fitting standards. Typical applications include construction equipment, agricultural machinery, and industrial hydraulic systems.

Key Features

• 45-degree elbow geometry for angled hose routing in confined installations
• Seal-Lok face seal shaft type for leak-resistant hydraulic connections
• Steel construction for durability in high-pressure hydraulic service
• 1-3/16-12 thread size for precise port engagement
• Meets ISO 12151-1-SWE45 standard for hydraulic hose fittings
• Compatible with Parker 787TC and 797TC hose series

Compatibility

Designed for use with Parker 787TC and 797TC hose series. Conforms to ISO 12151-1-SWE45.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Inspect the face seal surface and mating port for damage or contamination before assembly. Follow the assembly torque guidance specified in the applicable Parker fitting installation documentation and adhere to relevant fluid power safety standards for your jurisdiction.
