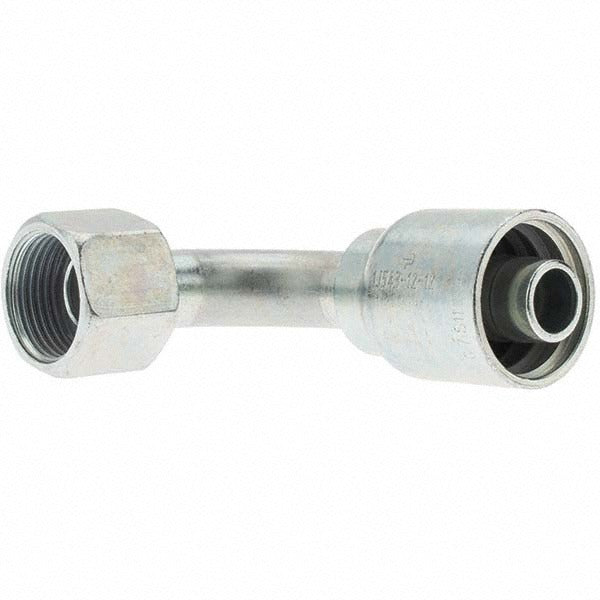

Parker BD-1J5431212-1 Seal-lok Swivel 90 Elbow Fitting

Product Description

The PARKER BD-1J5431212-1 is a female Seal-Lok swivel 90-degree elbow hose fitting designed for hydraulic hose assemblies. Built from steel with a threaded connection type, this Series 43 fitting accepts hoses with a 0.75 inch inside diameter and a 3/4 inch thread size. The 90-degree elbow geometry allows routing hydraulic lines in tight spaces or around obstructions without bending the hose itself. Licensed HVAC, plumbing, and fluid-power technicians working on hydraulic systems rely on Seal-Lok fittings for their face-seal design, which provides reliable leak-resistant connections under pressure. Compliant with ISO 12151-1, this fitting is suited for demanding hydraulic service environments.

This fitting is intended for use in hydraulic hose assembly applications where a 90-degree change of direction is required at the hose end. It is compatible with a broad range of Parker hydraulic hoses, including the 187, 302, 304, 387, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487, 722, 787, 797, and 881 series hoses in TC and ST configurations. Typical install scenarios include mobile equipment, industrial machinery, and any hydraulic circuit requiring a female Seal-Lok swivel termination at an angled hose end.

Key Features

• Female Seal-Lok face-seal swivel design for reliable, leak-resistant hydraulic connections
• 90-degree elbow shape simplifies routing in confined or angled installations
• Steel construction for durability in high-pressure hydraulic service
• 3/4 inch thread size with 0.75 inch hose inside diameter compatibility
• Meets ISO 12151-1 standard for hydraulic fluid power hose fittings
• Series 43 fitting — compatible with a wide range of Parker hose series

Compatibility

Designed for use with Parker 187 (TC, ST), 302, 304, 387 (TC, ST), 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 (TC, ST), 722 (TC, ST), 787 (TC, ST), 797 (TC, ST), and 881 series hydraulic hoses with a 0.75 inch inside diameter.

Installation Notes

Installation should be performed by a qualified fluid-power technician or hydraulic systems professional. Depressurize and fully relieve the hydraulic circuit before disconnecting any hose or fitting. Follow the equipment manufacturer and ISO 12151-1 guidelines for assembly, including proper use of a torque wrench to achieve specified connection engagement — do not overtighten. California Proposition 65 warnings apply; handle per applicable safety regulations.
