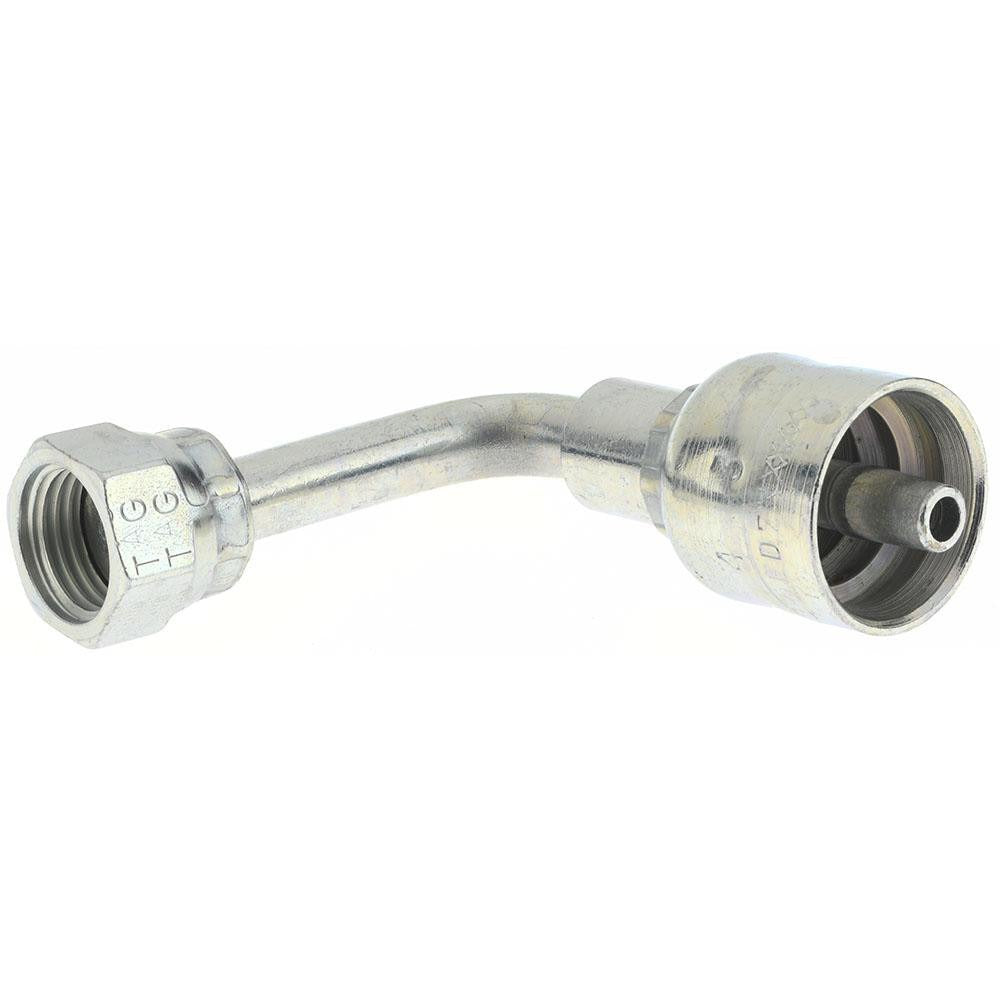

Parker BD-1J14310-10-1 Seal-lok 90 Elbow Fitting 5/8 in

Product Description

The PARKER BD-1J14310-10-1 is a female Seal-Lok swivel 90-degree elbow fitting designed for hydraulic hose assemblies. Constructed from steel, this fitting accepts a hose with a 0.625 inch inside diameter and a 5/8 inch thread size. The 90-degree elbow configuration allows routing hydraulic lines in tight or angled installations where a straight fitting will not clear surrounding components. The Seal-Lok face-seal design reduces the risk of leakage at the connection point, making it a dependable choice for high-pressure hydraulic circuits. Licensed hydraulic technicians and fluid power specialists use this fitting when assembling or replacing hose ends on mobile and industrial hydraulic systems.

This fitting is rated for use with a wide range of Parker hydraulic hose series in size 10, with a 0.625 inch inside diameter. It is suited for industrial, mobile, and construction equipment hydraulic systems where angled hose routing is required. The swivel feature allows final alignment of the hose without twisting the hose body, simplifying installation in confined spaces.

Key Features

• Female Seal-Lok face-seal design for leak-resistant hydraulic connections
• 90-degree swivel elbow allows hose routing in tight or angled installations
• Steel construction for durability in industrial and mobile hydraulic applications
• 5/8 inch thread size with 0.625 inch hose inside diameter
• Swivel end permits hose alignment without twisting during final assembly
• Meets ISO 12151-1-SWEL90 standard

Compatibility

Designed for use with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hoses in size 10.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and drain the hydraulic system completely before removing or installing any hose fittings. Inspect the mating face-seal surface for damage before assembly, as nicks or scratches on the sealing face can cause leaks under pressure. Torque the fitting according to the system designer's specifications and verify there are no leaks before returning the system to service.
