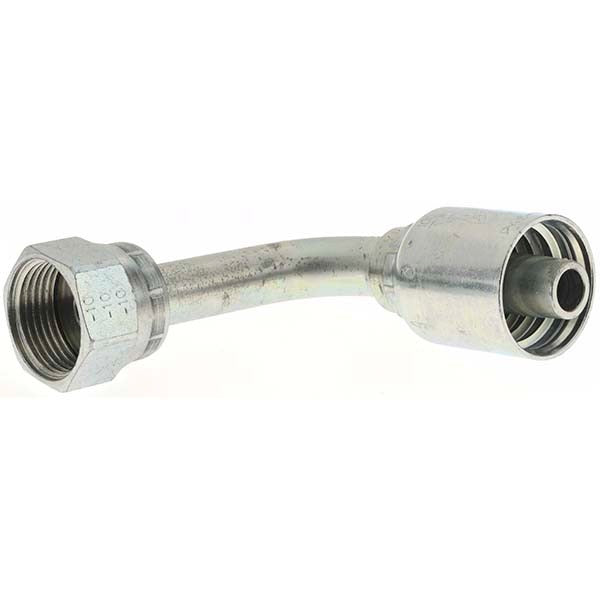

Parker BD-1J143-10-8-1 Swivel 90 Elbow Hose Fitting 1/2 in

Product Description

The PARKER BD-1J143-10-8-1 is a female Seal-Lok swivel 90-degree elbow fitting designed for use in hydraulic hose assemblies. Constructed from steel, this fitting connects a hose with a 1/2-inch nominal inside diameter to a hydraulic circuit at a 90-degree angle, allowing lines to route cleanly around obstructions or tight enclosures. The Seal-Lok face-seal design eliminates the leak paths common with tapered thread connections, making it a preferred choice where system cleanliness and reliable sealing are critical. It is installed by hydraulic technicians and fluid power specialists in mobile, industrial, and stationary hydraulic systems.

This fitting is suited for applications where 90-degree routing is required to reduce hose strain, minimize bending radius violations, and keep hydraulic lines clear of moving components. The swivel feature allows the hose end to be positioned without twisting the hose body during assembly. Typical installation scenarios include hydraulic cylinders, pumps, manifold ports, and valve banks in agricultural equipment, construction machinery, and industrial presses where Parker Seal-Lok face-seal fittings are specified.

Key Features

• Female Seal-Lok face-seal swivel end eliminates leak paths associated with tapered or straight-thread connections
• 90-degree elbow geometry allows clean hose routing in confined or congested plumbing layouts
• Swivel design permits hose positioning without inducing twist in the hose assembly
• Steel construction provides durability for high-pressure hydraulic service
• Compatible with 1/2-inch nominal hose size for versatile circuit integration

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies using a 1/2-inch hose size with Parker Seal-Lok face-seal port connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any fittings. Inspect the face-seal o-ring and seating surface for damage before assembly, and torque the fitting nut to the value specified in the Parker fitting installation guidelines for this series. Do not use thread sealants or pipe dope on Seal-Lok face-seal connections, as the o-ring provides the seal.
