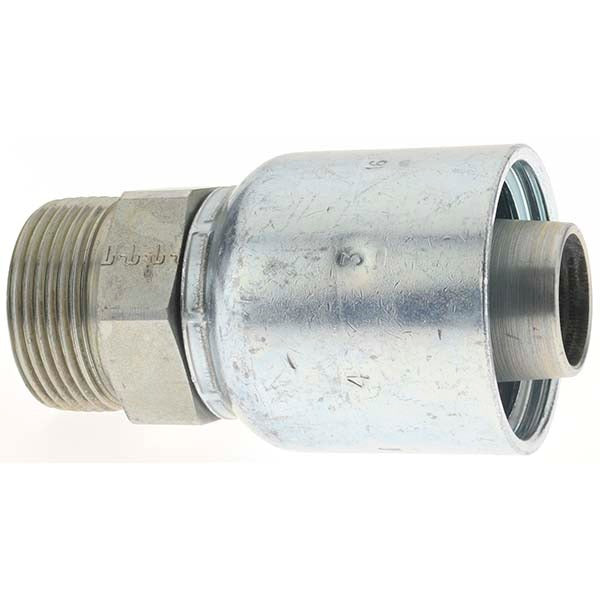

Parker BD-1J04316-16-1 Male Orfs Swivel Fitting 1 in

Product Description

The PARKER BD-1J04316-16-1 is a male ORFS swivel hydraulic hose fitting designed for high-pressure hydraulic line connections requiring a leak-free face seal. Built from steel, this Seal-Lok style fitting accommodates a 1-inch hose diameter and uses an O-ring face seal (ORFS) interface to deliver a reliable, vibration-resistant connection in demanding hydraulic systems. The swivel design allows the fitting to rotate during installation, reducing hose twist and simplifying assembly on tight routing paths. Hydraulic technicians and equipment mechanics rely on this type of fitting when building or repairing hydraulic circuits on mobile equipment, industrial machinery, and fluid power systems.

This fitting is suited for use in hydraulic plumbing applications where an ORFS face-seal connection is specified at the hose end. It is commonly installed on hydraulic hoses routed to cylinders, valves, pumps, or manifolds in both mobile and stationary hydraulic systems. The swivel end allows final tightening without twisting the hose assembly, which is especially useful in confined installation spaces or when replacing existing hose assemblies in the field.

Key Features

• Male ORFS swivel fitting provides a leak-free O-ring face seal interface
• Seal-Lok design ensures positive sealing under high-pressure hydraulic service
• Swivel end reduces hose twist during installation and torque-up
• Steel construction for durability in hydraulic system environments
• 1-inch hose diameter compatibility for standard hydraulic hose assemblies
• Single-piece packaging suitable for replacement and repair applications

Compatibility

Designed as an OEM-style replacement or new-assembly fitting for hydraulic hose systems requiring a male ORFS swivel end connection with a 1-inch hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect the O-ring face seal surface for nicks or contamination before assembly, and ensure the O-ring is properly seated before torquing. Follow the equipment manufacturer and Parker installation guidelines for ORFS fitting assembly; do not over-torque, as this can damage the sealing face.
