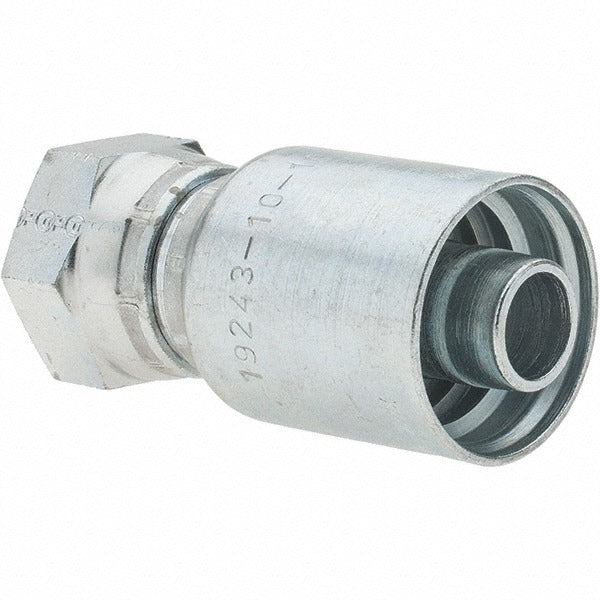

Parker BD-19243-10-10 Hydraulic Hose Swivel Fitting Bspp

Product Description

The PARKER BD-19243-10-10 is a steel hydraulic hose swivel fitting designed for use in hydraulic fluid power systems. It features a BSPP (British Standard Pipe Parallel) thread form and accommodates a 5/8-inch hose diameter, corresponding to a 10 mm hose size designation. The swivel design allows the fitting to rotate during assembly, reducing hose twist and stress at the connection point. This type of fitting is installed by hydraulic system technicians and millwrights working on mobile equipment, industrial machinery, and fluid power circuits.

This fitting is suited for hydraulic plumbing applications where BSPP threaded ports are present and a swivel-style connection is required to simplify hose routing. Typical installations include industrial hydraulic power units, mobile hydraulic systems on construction or agricultural equipment, and any application requiring a low-torque, twist-free hose termination in a high-pressure fluid circuit.

Key Features

• Swivel design reduces hose twist during installation and under dynamic load
• BSPP thread form for compatibility with parallel-thread hydraulic ports
• 5/8-inch hose diameter (10 mm hose size) accommodates common mid-range hydraulic hose
• Steel construction provides durability in high-pressure hydraulic environments
• Sold individually — package quantity of 1

Compatibility

Designed as an OEM-style hydraulic swivel fitting for systems utilizing BSPP threaded ports and 5/8-inch inside-diameter hydraulic hose. Specific system compatibility should be verified against the hydraulic circuit schematic and port thread specifications before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Always depressurize and bleed down the hydraulic system completely before removing or installing any fitting. BSPP fittings rely on a face seal or bonded seal rather than thread taper for pressure sealing — inspect the sealing surface and replace any damaged seal before assembly. Torque to the system or equipment manufacturer specifications; do not overtighten, as steel fittings can damage aluminum port threads.
