Parker BD-16F7716-16-1 Hydraulic Hose Fitting 45 Deg Elbow

Product Description

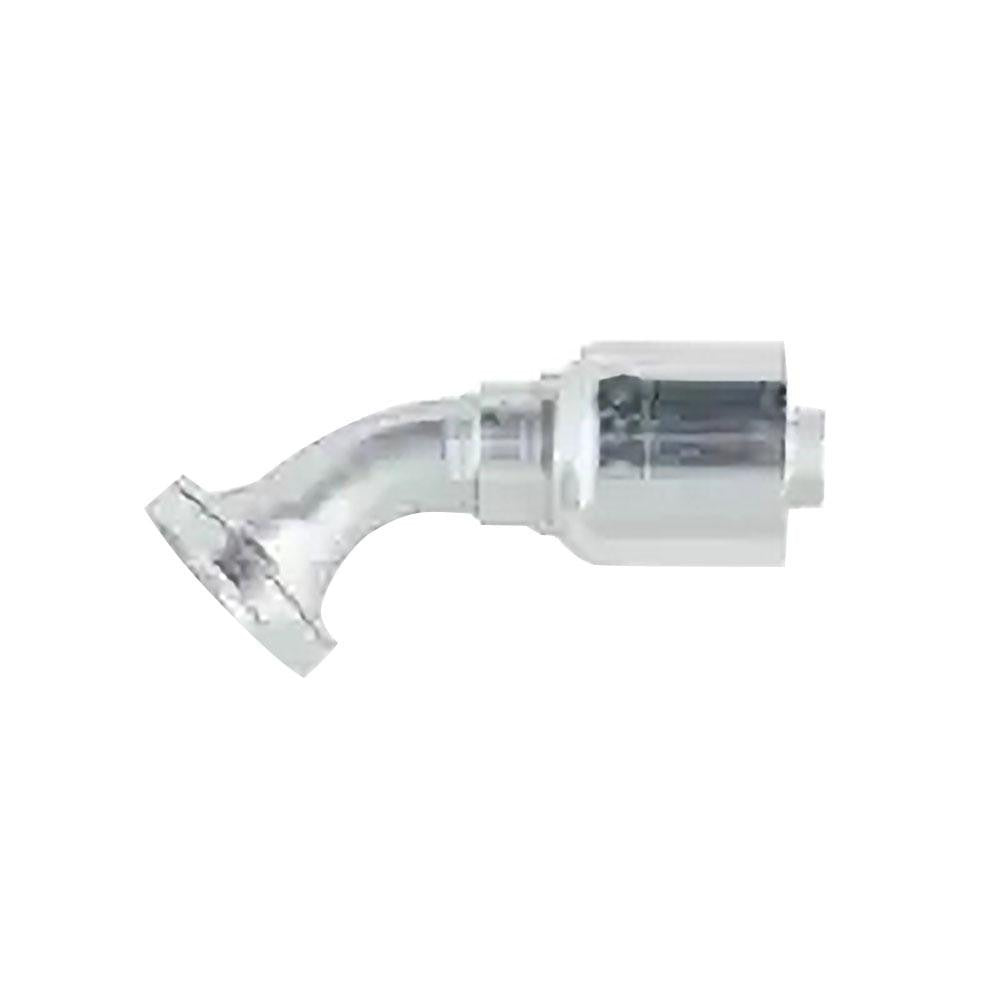

The PARKER BD-16F7716-16-1 is a 45-degree elbow hydraulic hose fitting designed for use in high-pressure hydraulic systems. Built from steel with a flanged SAE connection, this Series 77 fitting accepts a 1-inch inside diameter hose and delivers a secure, leak-resistant joint at a 45-degree angle. It conforms to ISO 12151-3-E45M-S, making it suitable for demanding fluid power applications where precise angular routing is required. Licensed hydraulic technicians and industrial mechanics install this type of fitting during hose assembly and system fabrication.

This fitting is specified for use with Parker 787TC and 797TC hydraulic hose. The hose size designation is 16, corresponding to a 1-inch hose inside diameter. The flanged SAE connection style is common in mobile equipment, industrial machinery, and heavy hydraulic circuits where vibration resistance and high-torque joint integrity are priorities. The 45-degree elbow geometry helps route hose runs in tight spaces while reducing stress at the connection point.

Key Features

• 45-degree elbow angle for angled hose routing in confined installations
• Flanged SAE connection type for secure, high-integrity joint
• Conforms to ISO 12151-3-E45M-S for international hydraulic system standards
• Steel construction for durability in high-pressure hydraulic environments
• Compatible with Parker 787TC and 797TC hose lines
• Series 77 fitting family for consistent cross-component compatibility

Compatibility

Designed for use with Parker 787TC and 797TC hydraulic hose, hose size 16, with a 1-inch inside diameter. Verify hose end configuration and system pressure ratings before installation.

Installation Notes

Hydraulic hose fittings of this type are installed by qualified hydraulic technicians or industrial mechanics familiar with fluid power systems. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any hose ends. Follow the hose and fitting manufacturer assembly instructions for proper ferrule crimping or skiving procedures. Inspect the flange face and mating surface for debris or damage before torquing the connection.
