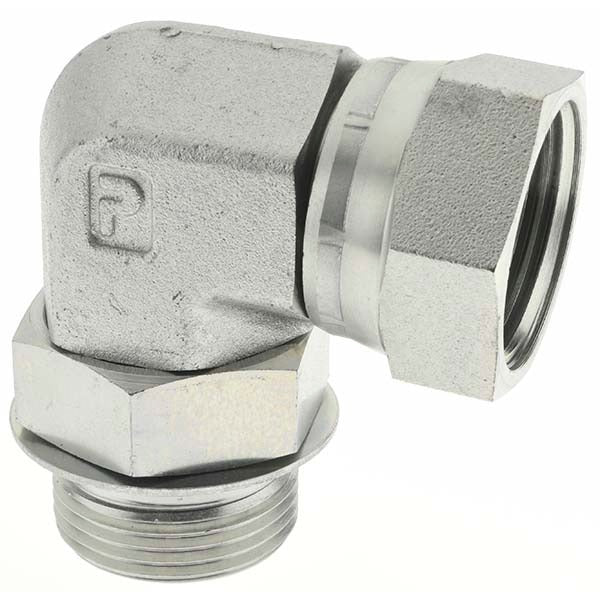

Parker BD-16268 Hydraulic Swivel Elbow Fitting 2500 Psi

Product Description

The PARKER BD-16268 is a steel hydraulic hose swivel elbow fitting designed for use in high-pressure hydraulic systems. It connects a 16 mm hose to an SAE O-Ring Boss (ORB) port using a 1-5/16-12 thread, with a pressure rating of 2,500 psi. The swivel design allows the hose to be positioned without twisting during installation or service. This fitting is installed by hydraulic system technicians and maintenance professionals working on mobile equipment, industrial machinery, and fluid power circuits.

This fitting is suited for residential and commercial hydraulic applications where an angled connection is needed at an SAE ORB port. It is commonly used on mobile equipment such as loaders, excavators, and lifts, as well as industrial hydraulic power units. The swivel elbow configuration is especially useful in tight spaces where a straight fitting would cause hose strain or kinking at the port connection.

Key Features

• Swivel elbow design allows hose positioning without twisting the hose body
• Rated to 2,500 psi for use in high-pressure hydraulic circuits
• SAE ORB thread type provides a reliable, leak-resistant O-ring face seal at the port
• 1-5/16-12 thread size with 16 mm hose compatibility
• Steel construction for durability in demanding hydraulic environments

Compatibility

Designed as an OEM-style replacement swivel elbow fitting for hydraulic systems using SAE O-Ring Boss ports with a 1-5/16-12 thread and 16 mm hose connections rated to 2,500 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the O-ring seat and replace the O-ring if damaged before installation. Follow applicable fluid power standards and equipment manufacturer torque guidelines when securing the fitting to the port.
