Parker BD-1414316-16-1 Hydraulic Hose 90 Elbow Size 16

Product Description

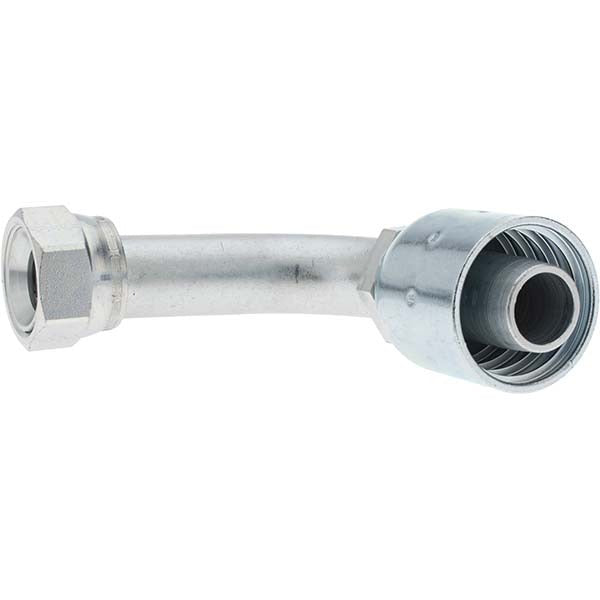

The PARKER BD-1414316-16-1 is a 90-degree elbow hydraulic hose fitting designed for use in high-pressure fluid conveyance systems. Built from steel with a Female JIC threaded connection, this fitting provides a secure, leak-resistant interface between the hose assembly and the hydraulic circuit. The hose inside diameter is 1 inch (Size 16), and the thread size is 1-5/16-12. It is installed by hydraulic technicians and mechanical contractors working on mobile equipment, industrial machinery, and fluid power systems.

This fitting is intended for use in hydraulic hose assemblies requiring a 90-degree directional change at the connection point. The Female JIC threaded shaft type suits applications where JIC flare fittings are specified. It is compatible with a defined range of Parker hose series used across industrial, agricultural, and mobile hydraulic equipment. The threaded connection type supports secure, tool-assisted assembly in both original equipment and field repair installations.

Key Features

• 90-degree elbow geometry for directional routing of hydraulic hose assemblies
• Steel construction for durability in high-pressure hydraulic environments
• Female JIC threaded connection for reliable, leak-resistant coupling
• Hose inside diameter of 1 inch (Size 16) with 1-5/16-12 thread size
• Meets ISO 12151-5 standards for hydraulic fluid power hose fittings
• California Proposition 65 compliant

Compatibility

Designed for use with Parker 187 TC, 187 ST, 302, 304, 387 TC, 387 ST, 422, 424, 426, 436, 471TC, 471ST, 472TC, 482TC, 482ST, 487 TC, 487 ST, 722 TC, 722 ST, 787 TC, 787 ST, 797 TC, 797 ST, and 881 hose series.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system assembly procedures. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Use appropriate wrenching flats and calibrated torque tools to achieve proper connection without over-tightening the JIC threaded interface. Inspect the mating flare seat and hose end for damage or contamination before assembly.
