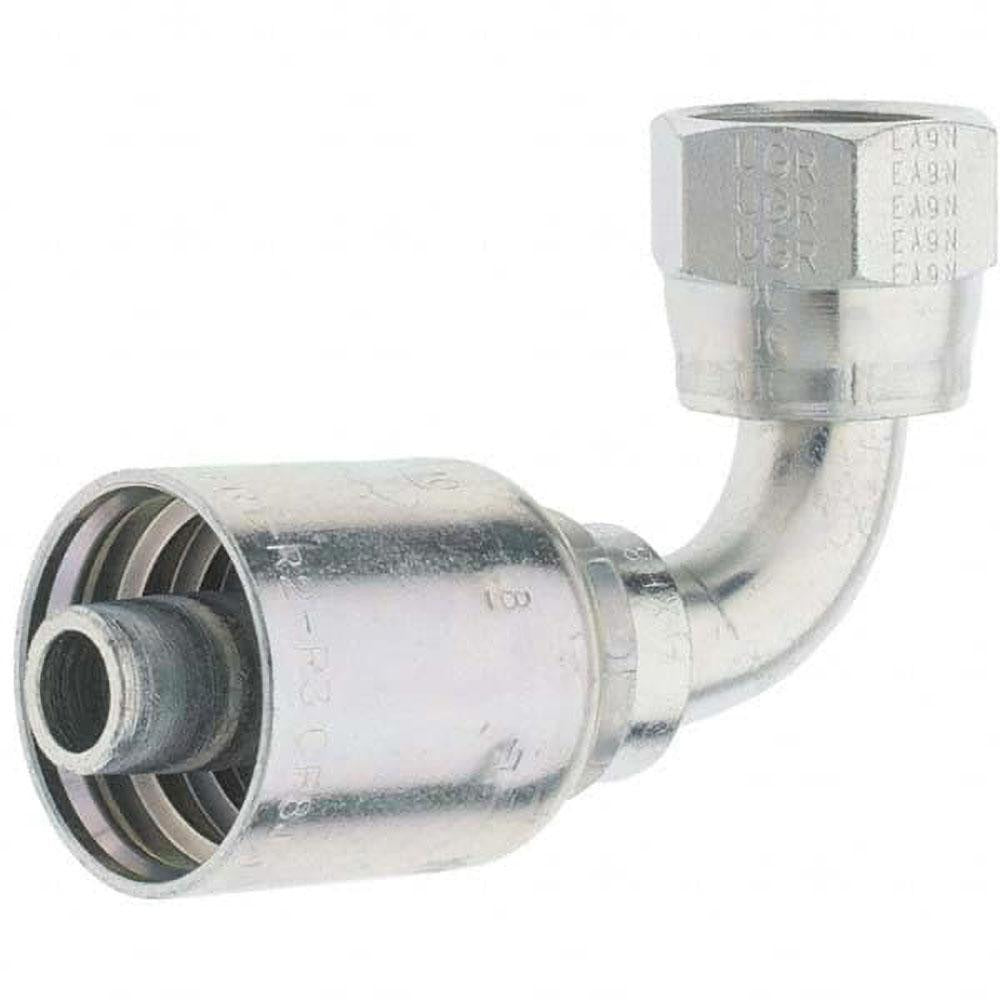

Parker BD-1397716-16-1 Female Jic Swivel 90 Elbow 1 in

Product Description

The PARKER BD-1397716-16-1 is a female JIC swivel 90-degree elbow hose fitting designed for hydraulic system assembly and repair. Manufactured from steel, this Series 77 fitting accepts a 1-inch inside diameter hose and uses a 1-5/16-12 threaded connection. The 90-degree elbow profile allows routing of hydraulic lines in tight spaces or around obstructions where a straight fitting will not work. It is installed by licensed hydraulic technicians and fluid power mechanics on mobile and industrial hydraulic systems.

This fitting is suited for use with Parker 787TC and 797TC hydraulic hose in applications requiring a hose size 16 connection. The female JIC swivel design allows the fitting body to rotate during installation, reducing hose twist and simplifying assembly in confined or multi-port manifold configurations. Typical applications include agricultural equipment, construction machinery, and industrial hydraulic circuits requiring a right-angle hose termination.

Key Features

• 90-degree elbow profile for routing hydraulic lines around obstructions
• Female JIC swivel connection reduces hose twist during assembly
• Steel construction for durability in high-pressure hydraulic service
• 1-5/16-12 thread size for secure, leak-resistant connection
• Compatible with Parker 787TC and 797TC hose series
• Hose size 16 with 1-inch inside diameter

Compatibility

Designed for use with Parker 787TC and 797TC hydraulic hose, hose size 16, with a 1-inch inside diameter and 1-5/16-12 thread connection.

Installation Notes

Hydraulic fittings of this type are installed by qualified fluid power technicians or licensed mechanics. Depressurize and fully bleed the hydraulic system before disconnecting or installing any fittings. Inspect threads and seating surfaces for damage before assembly, and apply appropriate thread sealant or confirm JIC metal-to-metal seating is used per system design requirements. Follow all applicable industry safety standards for hydraulic system service.
