Parker BD-1197716-16-1 Hydraulic Hose Fitting 90 Elbow

Product Description

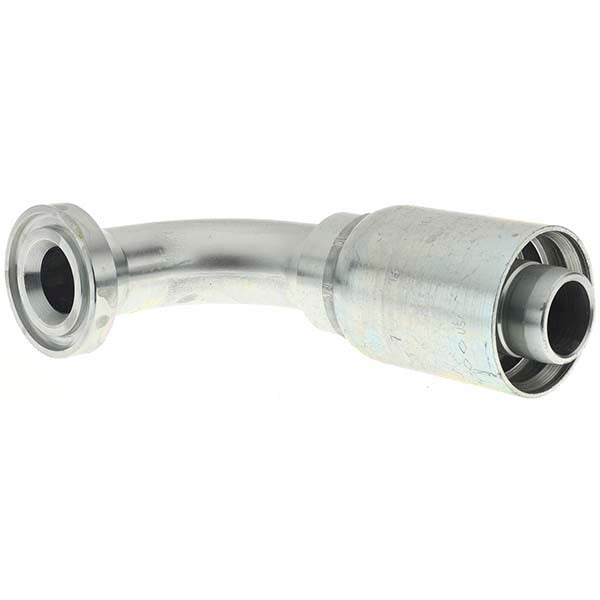

The PARKER BD-1197716-16-1 is a 90-degree elbow hydraulic hose fitting designed for high-pressure hydraulic plumbing applications. Built from steel with a flanged connection type, this fitting attaches to hydraulic hose with a 1-inch inside diameter (Size 16). It conforms to ISO 12151-3-E45M-L and is part of the Parker Series 77 fitting line. The SAE shaft type ensures compatibility with standard hydraulic circuit assemblies. Licensed hydraulic technicians and industrial mechanics install this type of fitting during hose assembly, equipment repair, and hydraulic circuit fabrication on mobile and stationary equipment.

This fitting is intended for use with Parker 787TC and 797TC hydraulic hose. The 90-degree elbow geometry is used in installations where straight fittings cannot clear frame members, bulkheads, or adjacent components. It is suited for both mobile hydraulics and industrial hydraulic systems requiring a clean directional change at the hose termination point. The flanged connection provides a secure, leak-resistant interface typical of higher-pressure hydraulic assemblies.

Key Features

• 90-degree elbow configuration for tight routing and directional changes in hydraulic plumbing
• 1-inch inside diameter (Hose Size 16) matches Parker 787TC and 797TC hose
• Flanged connection type for secure, high-integrity hydraulic circuit termination
• Steel construction for durability in demanding hydraulic environments
• Conforms to ISO 12151-3-E45M-L dimensional and performance standard
• SAE shaft type for compatibility with standard hydraulic assemblies

Compatibility

Specified for use with Parker 787TC and 797TC hydraulic hose at 1-inch inside diameter (Size 16). Part of the Parker Series 77 fitting family.

Installation Notes

Hydraulic fittings of this type are installed by licensed hydraulic technicians or industrial mechanics. Depressurize and fully de-energize the hydraulic system before disconnecting or assembling any hose or fitting. Inspect mating hose ends and flange seating surfaces for damage before assembly. Follow the equipment manufacturer's torque and assembly procedures for flanged hydraulic connections; improper installation can result in hose separation or system failure.
