Parker BD-1067720-20-1 Female Jic Swivel Fitting 1.25 in

Product Description

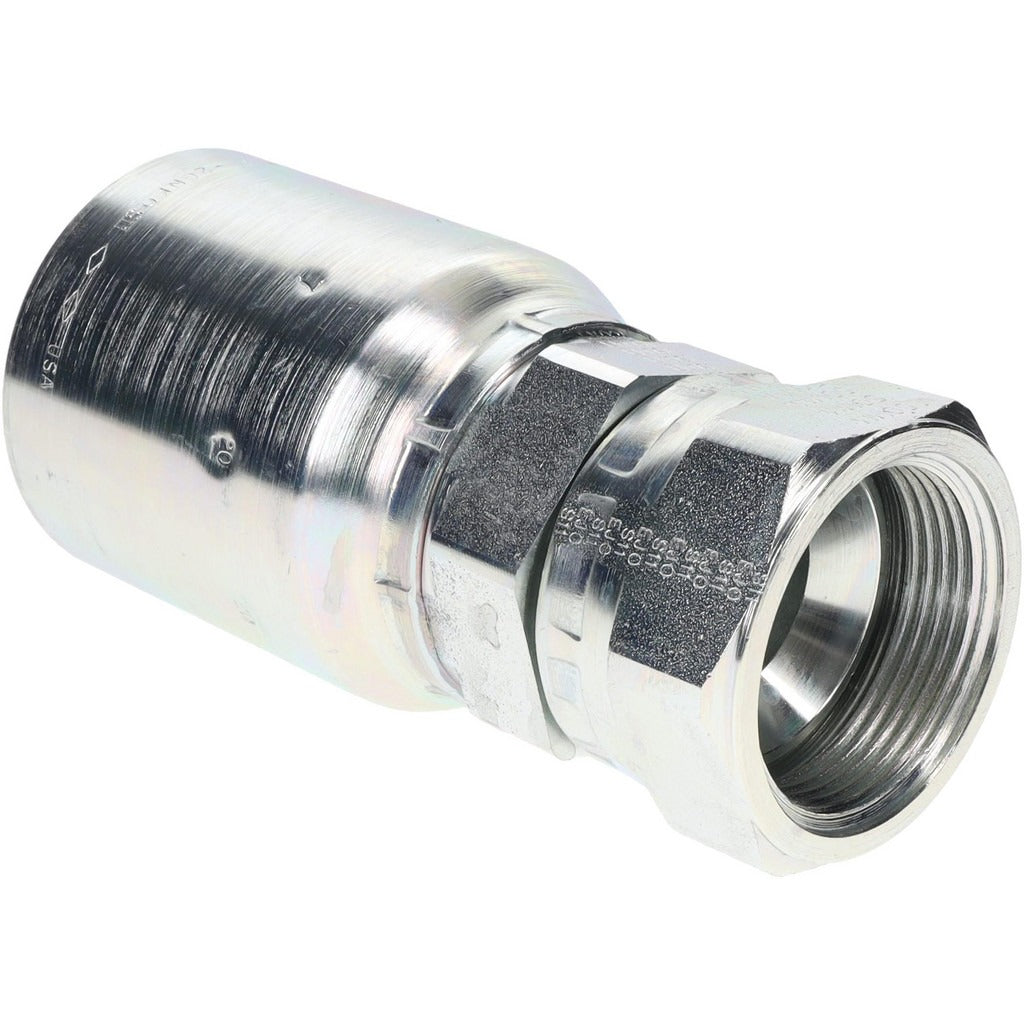

The PARKER BD-1067720-20-1 is a straight female JIC 37-degree swivel fitting designed for use with hydraulic hose assemblies in high-pressure fluid conveyance systems. Manufactured from steel, this threaded fitting accepts a 1.25-inch inside diameter hose and features a 1-5/8-12 thread size for secure, leak-resistant connections. At 4.86 inches in overall length, it is built to Series 77 specifications and is installed by hydraulic system technicians, industrial maintenance professionals, and fluid power specialists working on mobile or stationary equipment.

This fitting is suited for hydraulic plumbing applications in industrial, agricultural, construction, and mobile equipment environments where reliable swivel connections are required. The 37-degree JIC flare seat provides a metal-to-metal seal that is widely used in medium- to high-pressure hydraulic circuits. The swivel design allows for easier hose routing and reduces stress on the hose during installation and operation.

Key Features

• Straight female JIC 37-degree swivel design allows flexible hose positioning during assembly
• Steel construction provides durability in demanding hydraulic service environments
• 1-5/8-12 thread size delivers a secure, standard JIC threaded connection
• 4.86-inch overall length accommodates typical hose end assembly clearances
• Compatible with Parker Series 77 hydraulic hose lines including 711, 721, 721TC, 721ST, 722TC, 772TC, 772ST, and 774 hose types
• UNSPSC Code 40141734 for procurement and inventory classification

Compatibility

Designed for use with Parker 711, 721, 721TC, 721ST, 722TC, 772TC, 772ST, and 774 hydraulic hose. Hose inside diameter is 1.25 inches (20 mm hose size), Series 77.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and fully isolate the hydraulic circuit before disassembling any fittings or hose assemblies. Inspect the JIC 37-degree flare seat and mating surface for nicks or contamination before assembly. Tighten to the fitting and hose manufacturer torque guidelines and verify for leaks before returning the system to service.
