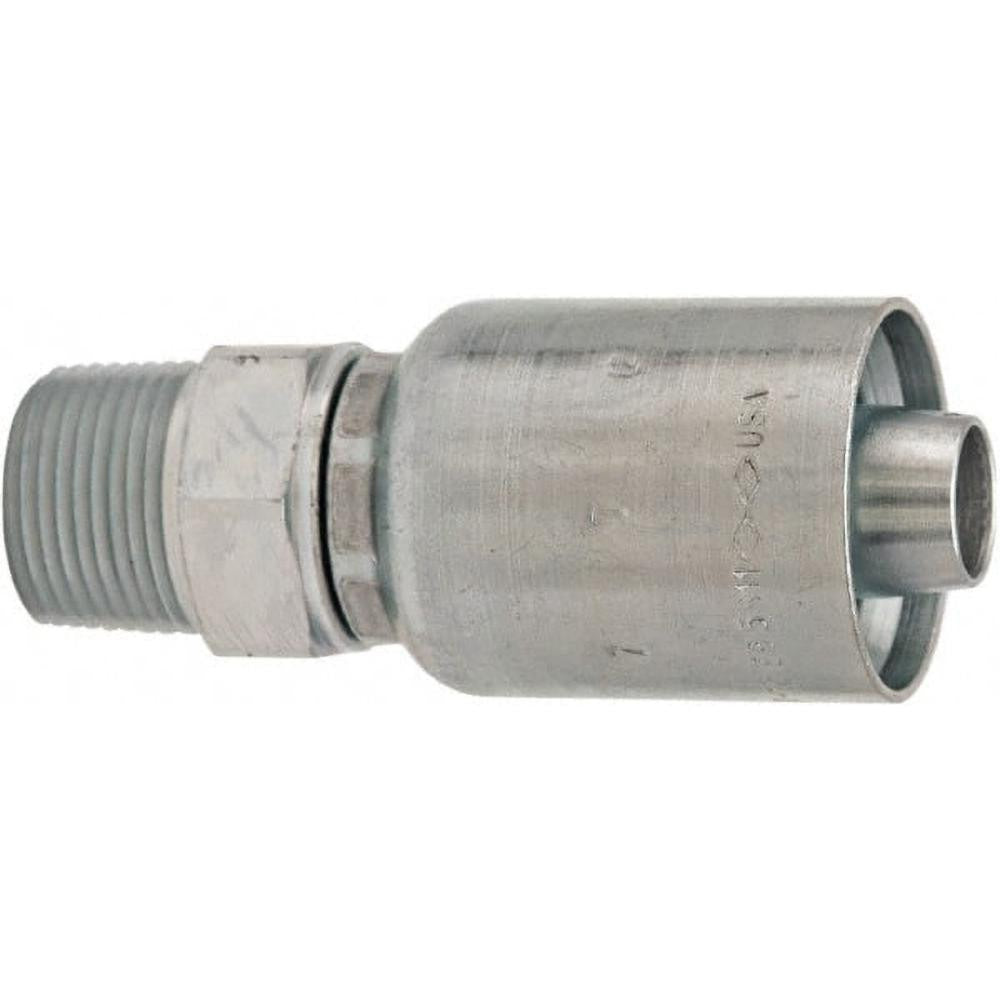

Parker BD-101771212-1 Male Rigid Hose Fitting 3/4-14 Nptf

Product Description

The PARKER BD-101771212-1 is a male rigid straight fitting designed for hydraulic hose assemblies. It provides a secure, threaded NPTF connection between the hose end and a port or system component, sealing on the threads to prevent fluid leak paths under pressure. Constructed from steel, this fitting accepts hose with a 0.75 inch inside diameter and features a 3/4-14 NPTF thread size. Overall length is 3.43 inches. The straight configuration suits inline connections where hose routing does not require an angled transition. Licensed hydraulic technicians and fluid power mechanics are the typical installers for this component.

This fitting is intended for use in hydraulic systems where Parker Series 77 hose is employed. It is rated for use with Parker 711, 721, 721TC, 721ST, 722TC, 772TC, 772ST, and 774 hose series. Applications span industrial and mobile hydraulic equipment where a reliable, leak-free male rigid end connection is required. The NPTF thread form provides a mechanical seal without relying solely on a sealant, making it appropriate for higher-pressure hydraulic circuits in both stationary and mobile equipment.

Key Features

• Male rigid straight configuration for direct inline hose-to-port connections
• 0.75 inch hose inside diameter, compatible with 3/4 inch hose
• 3/4-14 NPTF threaded shaft provides a pressure-sealing thread form
• Steel construction for durability in hydraulic service environments
• Overall length of 3.43 inches for straightforward routing and assembly
• Part of the Parker Series 77 fitting family for consistent system compatibility

Compatibility

Designed for use with Parker 711, 721, 721TC, 721ST, 722TC, 772TC, 772ST, and 774 hydraulic hose. This fitting belongs to the Parker Series 77 fitting family.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any hose fittings. Inspect threads and sealing surfaces for damage before assembly and apply thread sealant or tape only as recommended by the system designer for NPTF connections. Torque to system and hose manufacturer specifications and verify for leaks before returning the system to service.
